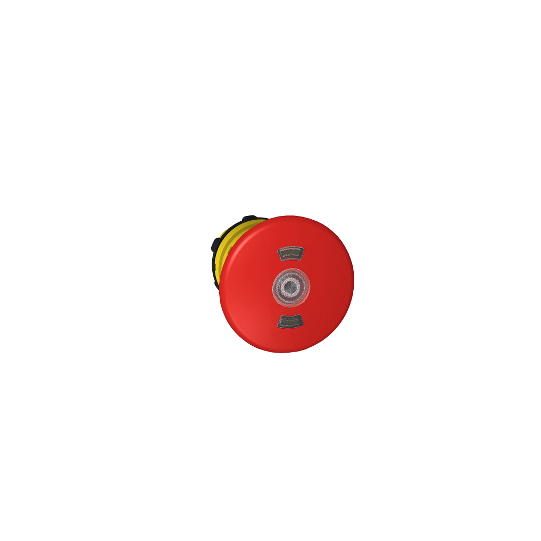

red Ø40 illum Emergency stop pushbutton head Ø22 trigger and latching - ZB5AT8643M
SKU : ZB5AT8643M
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
red Ø40 illum Emergency stop pushbutton head Ø22 trigger and latching - ZB5AT8643M
DESCRIPTION
| Range of product: | Harmony XALFHarmony XB5 |
|---|---|
| Product or component type: | Head for illuminated emergency stop push-button |
| Device short name: | ZB5 |
| Bezel material: | Dark grey plastic |
| Head type: | Standard |
| Mounting diameter: | 22.5 mm |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Type of operator: | trigger action and mechanical latching with mechanical state indicator |
| Reset: | Push-pull |
| Operator profile: | Red mushroom Ø 40 mm, unmarked |
| Device presentation: | Basic element |
| CAD overall width: | 40 mm |
|---|---|
| CAD overall height: | 40 mm |
| CAD overall depth: | 59 mm |
| Product weight: | 0.034 kg |
| Mechanical durability: | 300000 cycles |
| Main group: | E-stop |
| Group of product: | Emergency stop illuminated |
| Station name: | XALD 1 cut-outXALK 1 cut-out |
| Cap/operator or lens colour: | Red |
| Marking: | Unmarked |
| Electrical composition code: | M6 for M10 for MF1 for MR1 for |
| Customizable: | No |
| Customizable: | 0 |
| Product compatibility: | Integral LED |
| Compatibility code: | ZB5 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP54 conforming to IEC 60529 |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| IK degree of protection: | IK05 conforming to IEC 50102 |
| Standards: | GB 14048.5UL 508ISO 13850IEC 60204-1CSA C22.2 No 14IEC 60947-1JIS C8201-5-1IEC 60947-5-4IEC 60947-5-1JIS C8201-1 |
| Product certifications: | CSADNVBVLROS (Lloyds register of shipping)UL listed |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| China RoHS Regulation: | XEnvironmental Disclosure |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389119003766 |
|---|
