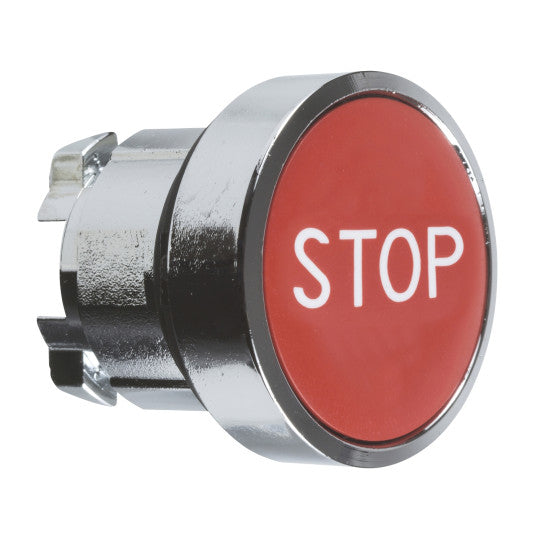

red flush pushbutton head Ø22 spring return "STOP" - ZB4BA434
DESCRIPTION
| Range of product: | Harmony XB4 |
|---|---|
| Product or component type: | Head for non-illuminated push-button |
| Device short name: | ZB4 |
| Bezel material: | Chromium plated metal |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 1 |
| Head type: | Standard |
| Shape of signaling unit head: | Round |
| Type of operator: | spring return |
| Operator profile: | Red flush, STOP (white) |
| CAD overall width: | 29 mm |
|---|---|
| CAD overall height: | 29 mm |
| CAD overall depth: | 28 mm |
| Mechanical durability: | 10000000 cycles |
| Electrical composition code: | C1 for C2 for C11 for C15 for |
| Main group: | Push-button |
| Group of product: | Flush push with marking |
| Cap/operator or lens colour: | Red |
| Marking: | STOP |
| Colour of marking: | White |
| Device presentation: | Basic element |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | ZB4 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class I conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| IK degree of protection: | IK06 conforming to IEC 50102 |
| Standards: | JIS C8201-5-1EN/IEC 60947-5-4EN/IEC 60947-1EN/IEC 60947-5-5EN/IEC 60947-5-1CSA C22.2 No 14UL 508JIS C8201-1 |
| Product certifications: | UL listedBVCSALROS (Lloyds register of shipping)DNVGL |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110887587 |
|---|
