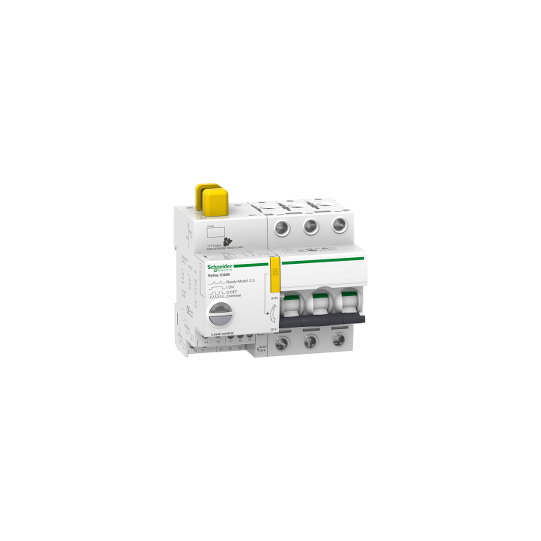

Reflex iC60N Ti24 25 A 3P curve C integrated control MCB - A9C62325
SKU : A9C62325
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Reflex iC60N Ti24 25 A 3P curve C integrated control MCB - A9C62325
DESCRIPTION
| Device application: | DistributionControl |
|---|---|
| Range: | Acti9 |
| Range of product: | Reflex iC60 |
| Product name: | Reflex iC60 |
| Device short name: | Reflex iC60N |
| Product or component type: | Integrated control circuit breaker |
| Poles description: | 3P |
| Number of protected poles: | 3 |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| [In] rated current: | 25 A |
|---|---|
| Network frequency: | 50/60 Hz |
| Breaking capacity code: | N |
| Breaking capacity: | 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-210 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Ui] rated insulation voltage: | 500 V AC |
| Contact position indicator: | Yes |
| Control type: | ON/OFF buttonRemote control by pulseRemote control by continuous commandToggle |
| Control signal type: | MaintainedImpulseMaintained very low voltage |
| Local signalling: | Flashing LED: device overheatGreen LED: device ONFlashing LED: device trippedFlashing LED: device readyRed LED: fault |
| [Uc] control circuit voltage: | 230 V AC 50/60 Hz24 V AC 50/60 Hz48 V AC 50/60 Hz24 V DC48 V DC |
| [Us] rated supply voltage: | 230 V AC at 50/60 Hz |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| 9 mm pitches: | 11 |
| Height: | 84 mm |
| Width: | 99 mm |
| Depth: | 77 mm |
| Colour: | White |
| Mechanical durability: | 50000 cycles |
| Electrical durability: | AC-1: 50000 cycles AC 50 Hz |
| Total power losses: | 8.1 W |
| Power losses per pole: | 2.7 W |
| Provision for padlocking: | Padlockable |
| Locking options description: | Padlock in OFF position |
| Earth-leakage protection: | Separate block |
| Product compatibility: | With PLC |
| Compatibility code: | Reflex_iC60 |
| Market segment: | ResidentialSmall commercial |
| IP degree of protection: | IP20 conforming to IEC 60529 |
|---|---|
| Pollution degree: | 3 |
| Tropicalisation: | 2 |
| Relative humidity: | 93 % at 40 °C |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your informationEnvironmental Disclosure |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480455650 |
|---|
