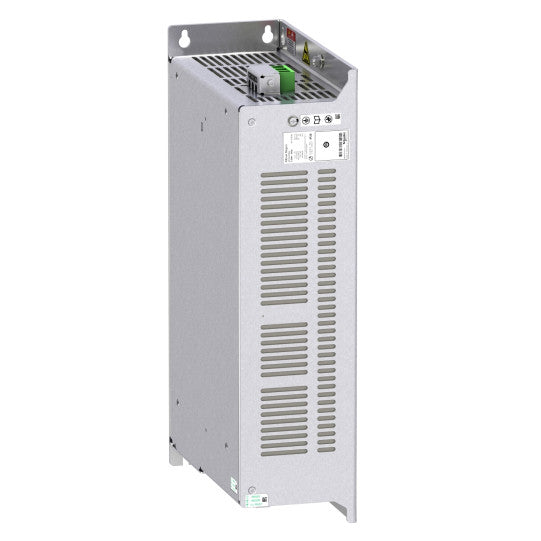

Regenerative unit - 7,5 kW - for Altivar variable speed drive - ATVRU75N4
SKU : ATVRU75N4
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Regenerative unit - 7,5 kW - for Altivar variable speed drive - ATVRU75N4
DESCRIPTION
| Range of product: | Altivar |
|---|---|
| Product or component type: | Power module |
| Device short name: | ATVR |
| Device application: | Energy regeneration |
| Range compatibility: | Altivar Machine ATV340Altivar Process ATV900Altivar Machine ATV320 |
|---|---|
| Fixing mode: | By screws |
| [Us] rated supply voltage: | 380...500 V - 15...10 % |
| Network number of phases: | 3 phases |
| Network frequency: | 45...65 Hz |
| Rated power in W: | 6.8 kW |
| [Ue] rated operational voltage: | 456...778 V DC |
| Maximum DC bus voltage: | 300...880 V DC |
| Input power: | 6.8 kW at 380...500 V AC for voltage inputs (continuous)10.2 kW at 380...500 V AC for voltage inputs (transient for 60 s) |
| Input current: | 16.5 A at 380 V AC for voltage inputs (continuous)14.5 A at 500 V AC for voltage inputs (continuous)22.9 A at 380 V AC for voltage inputs (transient for 60 s)19.1 A at 500 V AC for voltage inputs (transient for 60 s) |
| Output current: | 13.4 A at 380 V AC (continuous)11.9 A at 500 V AC (continuous)18.4 A at 380 V AC (transient for 60 s)15.4 A at 500 V AC (transient for 60 s) |
| Electrical connection: | Control: removable screw terminal block: 0.5...1.5 mm², AWG 20...AWG 16 (bottom)Power supply: removable screw terminal block: 2.5...4 mm², AWG 12...AWG 10 (top)DC bus: removable screw terminal block: 2.5...4 mm², AWG 12...AWG 10 (bottom) |
| Maximum voltage drop at rated load: | 3 % |
| Operating position: | Vertical or horizontal position |
| Height: | 337 mm |
| Width: | 80 mm |
| Depth: | 175 mm |
| Product weight: | 6 kg |
| Type of cooling: | Fan |
| Environmental characteristic: | Chemical pollution resistance class 3C3 conforming to EN/IEC 60721-3-3Dust pollution resistance class 3S2 conforming to EN/IEC 60721-3-3 |
|---|---|
| Ambient air temperature for operation: | -10...50 °C without derating50...60 °C with derating factor |
| Ambient air temperature for storage: | -40...70 °C |
| Operating altitude: | 1000...3000 m with power derating 1 % per 100 m |
| Pollution degree: | 2 conforming to EN/IEC 61800-5-1 |
| IP degree of protection: | IP20 |
| Standards: | IEC 61800-5-1IEC 61800-3 |
| Product certifications: | cUL |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481144218 |
|---|
