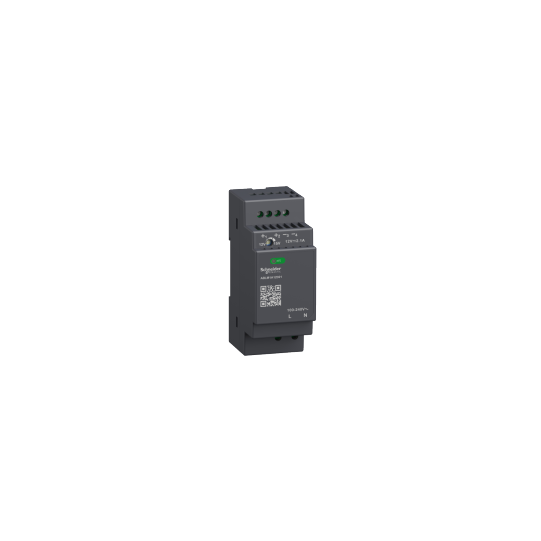

Regulated Power Supply, 100-240V AC, 12V 2.1 A, single phase, Modular - ABLM1A12021
SKU : ABLM1A12021
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Regulated Power Supply, 100-240V AC, 12V 2.1 A, single phase, Modular - ABLM1A12021
DESCRIPTION
| Range of product: | Modicon Power Supply |
|---|---|
| Product or component type: | Power supply |
| Power supply type: | Regulated switch mode |
| Variant option: | Modular |
| Enclosure material: | Plastic |
| Input voltage: | 100...240 V AC single phase100...240 V AC 2 phases |
| Input voltage limits: | 90...264 V AC |
| Rated power in W: | 25 W |
| Output voltage: | 12 V DC |
| Power supply output current: | 2.1 A |
| Network frequency limits: | 50...60 Hz |
|---|---|
| Earthing system: | TNTTIT |
| Maximum leakage current: | 0.25 mA 240 V AC |
| Input protection type: | Integrated fuse (not interchangeable) 3.15 AExternal protection (recommended) 20 A Curve BExternal protection (recommended) 20 A Curve CExternal protection (recommended) 4 A Curve BExternal protection (recommended) 4 A Curve C |
| Inrush current: | 25 A at 115 V50 A at 230 V |
| Power factor: | 0.48 at 115 V AC0.38 at 230 V AC |
| Efficiency: | 85 % at 115 V AC85 % at 230 V AC |
| Output voltage limits: | 12...15 V |
| Power dissipation in W: | 4.6 W |
| Current consumption: | |
| Response time: | |
| Holding time: | > 20 ms 115 V AC> 60 ms 230 V AC |
| Load capacitance: | 3000 µF |
| Residual ripple: | |
| Service life: | 10 year(s) |
| Meantime between failure [MTBF]: | 2500000 h at 25 °C, full load1000000 h at 55 °C, 80 % load |
| Output protection type: | Against overload and short-circuits, protection technology: automatic resetAgainst over temperature, protection technology: manual resetAgainst overvoltage, protection technology: manual reset |
| Connections - terminals: | Screw connection: 0.5...1.5 mm², (AWG 20...AWG 16) without wire end ferrule for input/outputScrew connection: 0.5...1 mm², (AWG 20...AWG 18) with wire end ferrule for input/output |
| Line and load regulation: | |
| Status LED: | 1 LED (green)output voltage |
| Depth: | 55.6 mm |
| Height: | 91 mm |
| Width: | 36 mm |
| Product weight: | 0.170 kg |
| Output coupling: | Serial |
| Mounting support: | Top hat type TH35-15 rail conforming to IEC 60715Top hat type TH35-7.5 rail conforming to IEC 60715Double-profile DIN rail panel mounting |
| Supply: | SELV conforming to EN/IEC 60950-1SELV conforming to EN/IEC 60204-1SELV conforming to IEC 60364-4-41 |
| Standards: | EN 62368-1EN/IEC 61010-1EN 61010-2-201EN/IEC 61204-3EN 61000-6-1EN 61000-6-2EN 61000-6-3EN 61000-6-4EN 61000-3-2EN 61000-3-3UL 62368-1UL 61010-1UL 61010-2-201CSA C22.2 No 62368-1CSA C22.2 No 61010-1CSA C22.2 No 61010-2-201EN/IEC 62368-1 |
|---|---|
| Product certifications: | CECUL listedCUL recognizedRCMCB SchemeEACKCNEC: class 2 |
| Operating altitude: | 2000 m...5000 m overvoltage category II |
| Shock resistance: | 100 m/s² for 11 ms |
| IP degree of protection: | IP20 |
| Ambient air temperature for operation: | -25...55 °C (without current derating)55...70 °C (with current derating of 2.67 % per °C) |
| Ambient air temperature for storage: | -40...85 °C |
| Relative humidity: | 0...95 % without condensation |
| Overvoltage category: | II |
| Electrical energy source class conforming to IEC 62368-1: | ES1 |
| Electrical shock protection class: | Class II without PE connection |
| Pollution degree: | 2 |
| Vibration resistance: | 3 mm (f= 2...9 Hz) conforming to IEC 60721-3-310 m/s² (f= 9...200 Hz) conforming to IEC 60721-3-3 |
| Electromagnetic compatibility: | Immunity to electrostatic discharge - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2Immunity to electrostatic discharge - test level: 9 kV (air discharge) conforming to EN/IEC 61000-4-2Electromagnetic field immunity test - test level: 10 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3Electromagnetic field immunity test - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3Electromagnetic field immunity test - test level: 3 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3Immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4Surge immunity test - test level: 3 kV (between power supply and earth) conforming to EN/IEC 61000-4-5Surge immunity test - test level: 1.5 kV (between phases) conforming to EN/IEC 61000-4-5Immunity to conducted disturbances - test level: 10 Vrms (0.15...80 MHz) conforming to EN/IEC 61000-4-6Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8Immunity to voltage dips - test level: 100 % (1 cycle) conforming to EN/IEC 61000-4-11Immunity to voltage dips - test level: 60 % (10 cycles) conforming to EN/IEC 61000-4-11Immunity to voltage dips - test level: 30 % (25 cycles) conforming to EN/IEC 61000-4-11Disturbing field emission conforming to EN 55016-2-3Limits for harmonic current emissions conforming to EN 61000-3-2Conducted disturbance emission conforming to EN 55016-1-2Conducted disturbance emission conforming to EN 55016-2-1 |
| Electromagnetic emission: | Conducted emissions conforming to EN 61000-6-3Radiated emissions conforming to EN 61000-6-4 |
| Dielectric strength: | 3000 V AC input/output |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481500144 |
|---|
