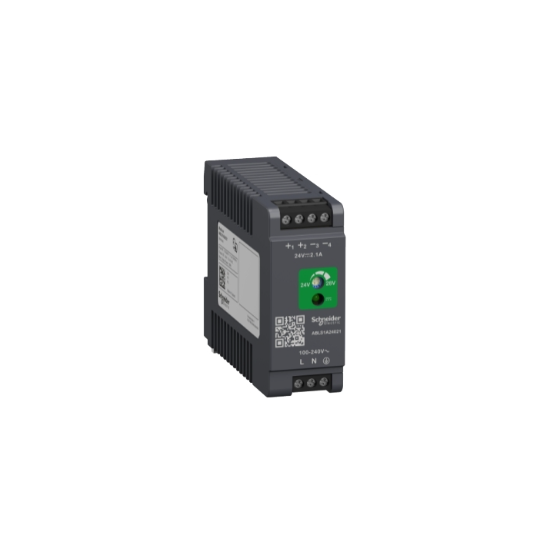

Regulated Power Supply, 100-240V AC, 24V 2.1 A, single phase, Optimized - ABLS1A24021
DESCRIPTION
| Range of product: | Modicon Power Supply |
|---|---|
| Product or component type: | Power supply |
| Power supply type: | Regulated switch mode |
| Variant option: | Optimized |
| Enclosure material: | Plastic |
| Input voltage: | 100...240 V AC single phase100...240 V AC phase to phase |
| Rated power in W: | 50 W |
| Output voltage: | 24 V DC |
| Power supply output current: | 2.1 A |
| Input voltage limits: | 85...264 V AC |
|---|---|
| Network frequency limits: | 50...60 Hz |
| Earthing system: | TNTTIT |
| Maximum leakage current: | 1 mA 240 V AC |
| Input protection type: | Integrated fuse (not interchangeable) 3.15 AExternal protection (recommended) 20 A Curve CExternal protection (recommended) 10 A Curve BExternal protection (recommended) 6 A Curve C |
| Inrush current: | 35.0 A at 115 V75.0 A at 230 V |
| Power factor: | 0.45 at 115 V AC0.35 at 230 V AC |
| Efficiency: | 86 % at 115 V AC88 % at 230 V AC |
| Output voltage limits: | 24...28 V |
| Power dissipation in W: | 7.5 W |
| Current consumption: | |
| Response time: | |
| Holding time: | > 20 ms 100 V AC> 100 ms 230 V AC |
| Load capacitance: | 3000 µF |
| Residual ripple: | |
| Meantime between failure [MTBF]: | 2000000 h at 25 °C, full load conforming to SR 332900000 h at 55 °C, 80 % load conforming to SR 332 |
| Output protection type: | Against overload and short-circuits, protection technology: automatic resetAgainst over temperature, protection technology: manual resetAgainst overvoltage, protection technology: manual reset |
| Connections - terminals: | Screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) for input/output |
| Line and load regulation: | |
| Status LED: | 1 LED (green) output voltage |
| Depth: | 89.5 mm |
| Height: | 75 mm |
| Width: | 30 mm |
| Net weight: | 0.180 kg |
| Output coupling: | ParallelSerial |
| Mounting support: | Top hat type TH35-15 rail conforming to IEC 60715Top hat type TH35-7.5 rail conforming to IEC 60715Double-profile DIN rail |
| Supply: | SELV conforming to EN/IEC 60950-1SELV conforming to EN/IEC 60204-1SELV conforming to IEC 60364-4-41 |
| Dielectric strength: | 3000 V AC with input to output |
| Service life: | 10 year(s) |
| Overvoltage category: | II |
| Standards: | EN 62368-1EN/IEC 61204-3EN 61000-6-1EN 61000-6-2EN 61000-6-3EN 61000-6-4EN 61000-3-2EN 61000-3-3UL 62368-1CSA C22.2 No 62368-1UL 508CSA C22.2 No 107.1EN/IEC 62368-1 |
|---|---|
| Product certifications: | CECUL listedCUL recognizedRCMCB SchemeEACKCNEC: class 2 |
| Operating altitude: | |
| Shock resistance: | 150 m/s² for 11 ms |
| IP degree of protection: | IP20 |
| Ambient air temperature for operation: | -20...-10 °C with current derating of 2 % per °C mounting position A -10...55 °C without derating mounting position A 55...70 °C with current derating of 3.33 % per °C mounting position A |
| Electrical shock protection class: | Class I |
| Pollution degree: | 2 |
| Vibration resistance: | 3 mm (f= 2...9 Hz) conforming to IEC 60068-2-610 m/s² (f= 9...200 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic compatibility: | Immunity to electrostatic discharge - test level: 8 kV (contact discharge) conforming to EN/IEC 61000-4-2Immunity to electrostatic discharge - test level: 15 kV (air discharge) conforming to EN/IEC 61000-4-2Immunity to conducted RF disturbances - test level: 15 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3Immunity to conducted RF disturbances - test level: 5 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3Immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4Surge immunity test - test level: 4 kV (between power supply and earth) conforming to EN/IEC 61000-4-5Surge immunity test - test level: 3 kV (between phases) conforming to EN/IEC 61000-4-5Immunity to conducted RF disturbances - test level: 15 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8Immunity to voltage dips conforming to EN/IEC 61000-4-11Disturbing field emission conforming to EN 55016-2-3Limits for harmonic current emissions conforming to EN 61000-3-2 conforming to EN 55016-1-2 conforming to EN 55016-2-1 |
| Electromagnetic emission: | Conducted emissions conforming to EN 61000-6-3Radiated emissions conforming to EN 61000-6-4 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606481500182 |
|---|
