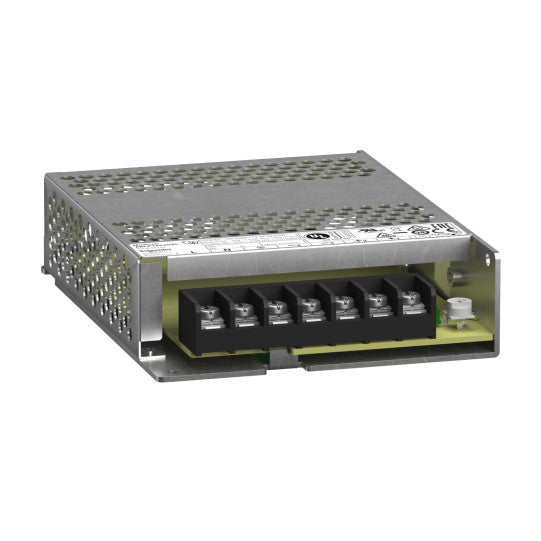

Regulated Power Supply, 100...240V AC, 24V 4.5A, single phase, Panel Mount - ABLP1A24045
SKU : ABLP1A24045
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Regulated Power Supply, 100...240V AC, 24V 4.5A, single phase, Panel Mount - ABLP1A24045
DESCRIPTION
| Range of product: | Modicon Power Supply |
|---|---|
| Product or component type: | Power supply |
| Power supply type: | Regulated switch mode |
| Variant option: | Panel mount |
| Enclosure material: | Aluminium |
| Input voltage: | 100...240 V AC single phase |
| Input voltage limits: | 90...264 V AC |
| Rated power in W: | 100 W |
| Output voltage: | 24 V DC |
| Power supply output current: | 4.5 A |
| Network frequency limits: | 50...60 Hz |
|---|---|
| Earthing system: | TNTTIT |
| Maximum leakage current: | 1 mA 240 V AC |
| Input protection type: | Integrated fuse (not interchangeable) 4 A |
| Inrush current: | 45 A at 115 V85 A at 230 V |
| Power factor: | 0.55 at 115 V AC0.45 at 230 V AC |
| Efficiency: | 89 % at 230 V AC |
| Output voltage limits: | 21.6...26.4 V |
| Power dissipation in W: | 20 W |
| Current consumption: | |
| Response time: | |
| Holding time: | > 20 ms 115 V AC> 40 ms 230 V AC |
| Load capacitance: | 4000 µF |
| Residual ripple: | |
| Service life: | 10 year(s) |
| Meantime between failure [MTBF]: | 700000 h at 25 °C, full load conforming to SR 332 |
| Output protection type: | Against overload and short-circuits, protection technology: automatic resetAgainst over temperature, protection technology: manual resetAgainst overvoltage, protection technology: manual reset |
| Connections - terminals: | Screw connection: 0.75...2.5 mm², (AWG 18...AWG 14) without wire end ferruleScrew connection: 0.75...1.5 mm², (AWG 18...AWG 16) with wire end ferrule |
| Line and load regulation: | |
| Status LED: | 1 LED (green)output voltage |
| Depth: | 129 mm |
| Height: | 30 mm |
| Width: | 97 mm |
| Product weight: | 0.3 kg |
| Output coupling: | ParallelSerial |
| Mounting support: | Top hat type TH35-15 rail conforming to IEC 60715Top hat type TH35-7.5 rail conforming to IEC 60715Double-profile DIN rail panel mounting |
| Supply: | SELV conforming to EN/IEC 60950-1SELV conforming to EN/IEC 60204-1SELV conforming to IEC 60364-4-41 |
| Standards: | EN 62368-1EN 61010-1EN 61010-2-201EN 61204-3EN 61000-6-1EN 61000-6-2EN 61000-6-3EN 61000-6-4EN 61000-3-2EN 61000-3-3UL 62368-1UL 61010-1UL 61010-2-201CSA C22.2 No 62368-1CSA C22.2 No 61010-1CSA C22.2 No 61010-2-201EN/IEC 62368-1 |
|---|---|
| Product certifications: | CECULusEACRCMCB SchemeKC |
| Environmental characteristic: | 3M4 conforming to IEC 60721-3-3 |
| Operating altitude: | 5000 m |
| Shock resistance: | 100 m/s² for 11 ms |
| IP degree of protection: | IP10 |
| Ambient air temperature for operation: | -30...70 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Relative humidity: | 0...95 % without condensation |
| Overvoltage category: | II |
| Electrical energy source class conforming to IEC 62368-1: | ES1 |
| Electrical shock protection class: | Class I |
| Pollution degree: | 2 |
| Vibration resistance: | 3 mm (f= 2...9 Hz) conforming to IEC 60068-2-610 m/s² (f= 9...200 Hz) conforming to IEC 60068-2-6 |
| Electromagnetic compatibility: | Immunity to electrostatic discharge - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2Immunity to electrostatic discharge - test level: 9 kV (air discharge) conforming to EN/IEC 61000-4-2Immunity to conducted RF disturbances - test level: 10 V/m (80 MHz...2 GHz) conforming to EN/IEC 61000-4-3Immunity to conducted RF disturbances - test level: 5 V/m (2...2.7 GHz) conforming to EN/IEC 61000-4-3Immunity to conducted RF disturbances - test level: 3 V/m (2.7...6 GHz) conforming to EN/IEC 61000-4-3Immunity to fast transients - test level: 4 kV (on input-output) conforming to EN/IEC 61000-4-4Surge immunity test - test level: 3 kV (between power supply and earth) conforming to EN/IEC 61000-4-5Surge immunity test - test level: 1.5 kV (between phases) conforming to EN/IEC 61000-4-5Immunity to conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to EN/IEC 61000-4-6Immunity to magnetic fields - test level: 30 A/m (50...60 Hz) conforming to EN/IEC 61000-4-8Immunity to voltage dips conforming to EN/IEC 61000-4-11Disturbing field emission conforming to EN 55016-2-3Limits for harmonic current emissions conforming to EN 61000-3-2Conducted disturbance emission conforming to EN 55016-1-2Conducted disturbance emission conforming to EN 55016-2-1 |
| Electromagnetic emission: | Conducted emissions conforming to EN 61000-6-3Radiated emissions conforming to EN 61000-6-4 |
| Dielectric strength: | 3750 V AC input to output |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481500281 |
|---|
