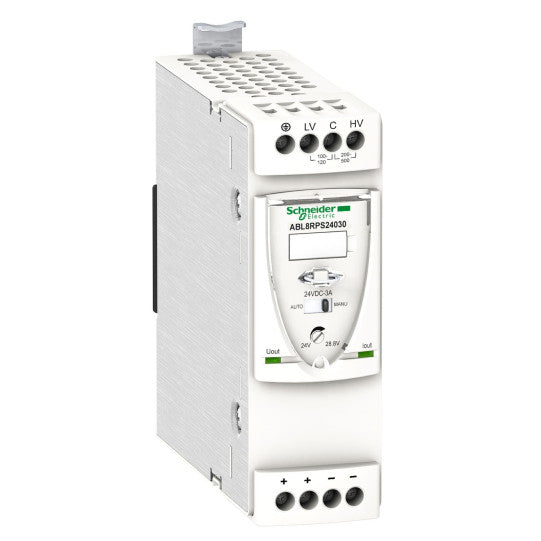

regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 3 A - ABL8RPS24030
SKU : ABL8RPS24030
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 3 A - ABL8RPS24030
DESCRIPTION
| Range of product: | Modicon Power Supply |
|---|---|
| Product or component type: | Power supply |
| Power supply type: | Regulated switch mode |
| Input voltage: | 100...120 V AC single phase, terminal(s): N-L1200...500 V AC phase to phase, terminal(s): L1-L2 |
| Input voltage limits: | 170...550 V AC85...132 V AC |
| Rated power in W: | 72 W |
| Output voltage: | 24 V DC |
| Power supply output current: | 3 A |
| Permissible temporary current boost: | 1.5 x In (for 4 s) |
| Anti-harmonic filter: | Low frequency harmonic currents |
| Inrush current: | 30 A |
|---|---|
| Power factor: | 0.51 at 240 V AC0.59 at 120 V AC |
| Efficiency: | 87 % |
| Output voltage limits: | 24...28.8 V adjustable |
| Power dissipation in W: | 7.8 W |
| Provided equipment: | Power factor correction filter conforming to IEC 61000-3-2 |
| Output protection type: | Against overload, protection technology: manual or automatic resetAgainst overvoltage, protection technology: 30...32 V, manual resetAgainst short-circuits, protection technology: manual or automatic resetAgainst undervoltage, protection technology: tripping if U Thermal, protection technology: automatic reset |
| Connections - terminals: | Screw type terminals: 3 x 0.5...3 x 4 mm², (AWG 22...AWG 12) for input connectionScrew type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for input ground connectionScrew type terminals: 4 x 0.5...4 x 4 mm², (AWG 22...AWG 12) for output connectionScrew type terminals: 1 x 0.5...1 x 4 mm², (AWG 22...AWG 12) for output ground connection |
| Status LED: | 1 LED (green and red)output voltage1 LED (green, red and orange)output current |
| Depth: | 125 mm |
| Height: | 125 mm |
| Width: | 45 mm |
| Product weight: | 0.3 kg |
| Output coupling: | ParallelSeries |
| Marking: | CE |
| Mounting support: | 35 x 15 mm symmetrical DIN rail 35 x 7.5 mm symmetrical DIN rail |
| Operating position: | Vertical |
| Supply: | SELV conforming to EN/IEC 60950-1SELV conforming to EN/IEC 60204-1SELV conforming to IEC 60364-4-41 |
| Standards: | CSA C22.2 No 60950-1UL 508EN/IEC 62368-1 |
|---|---|
| Product certifications: | CCSAusEACULRCMKC |
| Environmental characteristic: | EMC conforming to EN 61000-6-1EMC conforming to EN 61000-6-3EMC conforming to EN/IEC 61000-6-2EMC conforming to EN/IEC 61000-6-4EMC conforming to EN/IEC 61204-3Safety conforming to EN/IEC 60950-1Safety conforming to EN/IEC 61204-3 |
| Operating altitude: | 2000 m |
| IP degree of protection: | IP20 conforming to EN/IEC 60529 |
| Ambient air temperature for operation: | 50...60 °C (with derating factor)-25...50 °C (without) |
| Ambient air temperature for storage: | -40...70 °C |
| Relative humidity: | 0...90 % during operation0...95 % in storage |
| Electrical energy source class conforming to IEC 62368-1: | ES1 |
| Dielectric strength: | 3500 V between input and ground4000 V between input and output500 V between output and ground |
| Compatibility code: | ABL8R |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389119405607 |
|---|
