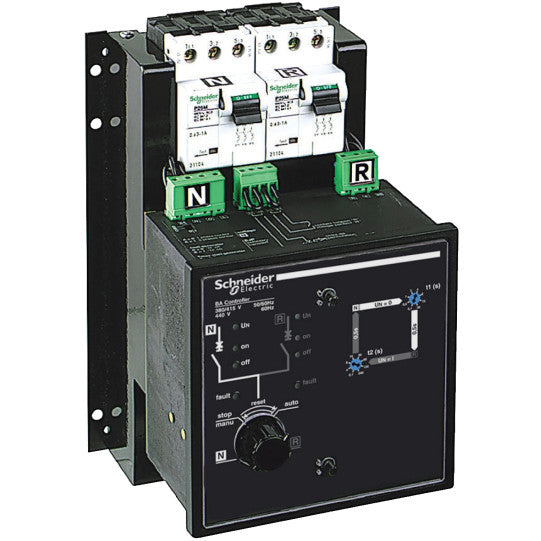

remote controlled source changeover, Transferpact, ACP plate and BA controller, 380 VAC to 415 VAC 50/60Hz, 440 VAC 60Hz - 29471
SKU : 29471
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
remote controlled source changeover, Transferpact, ACP plate and BA controller, 380 VAC to 415 VAC 50/60Hz, 440 VAC 60Hz - 29471
DESCRIPTION
| Range of product: | Compact NS100...630MasterPact NTNSX400...630Compact NS630b...1600MasterPact NWNSX100...250 |
|---|---|
| Product or component type: | Interface and control unit |
| Accessory / separate part category: | Interlocking accessory |
| Range compatibility: | ComPact NS circuit breakerComPact NSX circuit breakerMasterPact NT circuit breakerMasterPact NW circuit breaker |
| Device short name: | ACP + BA |
| [Us] rated supply voltage: | 380...415 V AC at 50/60 Hz440 V AC at 60 Hz |
| Operating mode: | Automatic operationStop (both normal and replacement source off)Forced operation on replacement sourceForced operation on normal source |
|---|---|
| Interlocked device: | MasterPact NWMasterPact NTNSX100...250Compact NS630b...1600NSX400...630Compact NS100...630 |
| Selection modes: | Circuit breaker on NCircuit breaker on R |
| Test function: | By opening the P25M circuit breaker supplying the controller |
| Complementary function: | Voluntary transfer to replacement source (e.g. energy management commands)Additional contact: transfer to replacement source only if contact is closed |
| Local signalling: | OnFault tripOff |
| Input type: | Contacts customer voluntary order to transfer to source R |
| Output type: | Contacts customer: indication of operation in automatic or stop mode |
| [Ith] conventional free air thermal current: | 8 A |
| [Ie] rated operational current: | AC-12: 4 A AC 440 VAC-12: 5 A AC 380/415 VAC-12: 8 A AC 110 VAC-12: 8 A AC 220/240 VAC-12: 8 A AC 24 VAC-12: 8 A AC 48 VAC-13: 6 A AC 110 VAC-13: 6 A AC 220/240 VAC-13: 7 A AC 24 VAC-13: 7 A AC 48 VAC-14: 4 A AC 110 VAC-14: 4 A AC 220/240 VAC-14: 5 A AC 24 VAC-14: 5 A AC 48 VAC-15: 3 A AC 220/240 VAC-15: 4 A AC 110 VAC-15: 5 A AC 24 VAC-15: 5 A AC 48 VDC-12: 0.4 A DC 250 VDC-12: 0.6 A DC 110 VDC-12: 2 A DC 48 VDC-12: 8 A DC 24 VDC-13: 2 A 24 V |
| Product compatibility: | Compact NSX100...250Compact NS630b...1600Compact NSX400...630 |
| Compatibility code: | ACP+BA |
| Standards: | IEC 947-5-1 |
|---|---|
| IP degree of protection: | IP20 connectors: conforming to EN 60529IP40 front: conforming to EN 60529IP30 side: conforming to EN 60529 |
| IK degree of protection: | Front: IK07 conforming to EN 50102 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3303430294719 |
|---|
