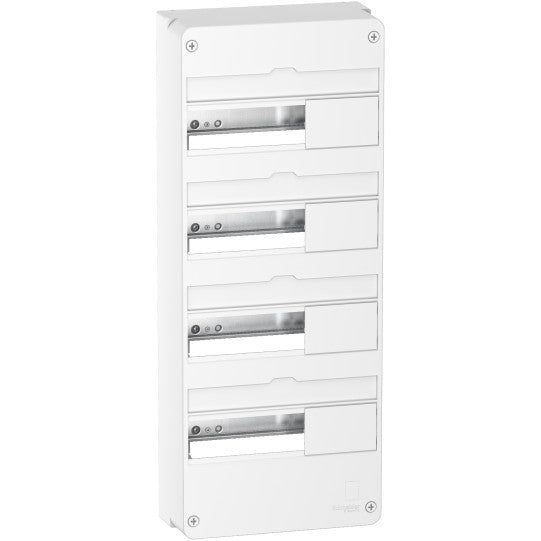

Resi9 Enclosure 4x13 Modules - R9H13404
SKU : R9H13404
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Resi9 Enclosure 4x13 Modules - R9H13404
DESCRIPTION
| Range: | Resi9 |
|---|---|
| Product name: | Resi9 CX |
| Product or component type: | Enclosure |
| Enclosure type: | Distribution enclosure |
| Number of 18 mm modules per row: | 13 |
| Provided equipment: | 1 x marking kit2 x blanking plate2 x terminal block support2 x phase and neutral terminal blocks1 x earth terminal block1 x front cover4 x DIN rail4 x label protector1 x marking label |
| Type of front cover: | Without |
| Standards: | IEC 60670-1IEC 60670-24 |
| Colour: | Enclosure: white (RAL 9003) |
| Enclosure mounting: | Surface |
|---|---|
| 9 mm pitches: | 26 |
| Number of horizontal rows: | 4 |
| Total number of 18 mm modules: | 52 |
| Power dissipation in W: | 61 W |
| [In] rated current: | 90 A conforming to IEC 60670 |
| Type of rail: | DIN |
| Mounting plate description: | Without mounting plate |
| Comb busbar and distribution block compatibility: | XE compatible |
| Number of terminal blocks: | 1 earth with 48 outgoers2 phase / neutral with 7 outgoers |
| Distribution block outgoers: | 6 x 25 mm² + 42 x 4 mm² for earth2 x 35 mm² + 12 x 16 mm² for phase / neutral |
| Enclosure material: | Self-extinguishing material |
| Product weight: | 2305 g |
| Width: | 252 mm |
| Height: | 625 mm |
| Depth: | 108 mm |
| Internal depth: | 106 mm |
| Targeted country: | France |
| Fire resistance: | 750 °C conforming to EN/IEC 60695-2-11 |
|---|---|
| IP degree of protection: | IP30 without door conforming to EN/IEC 60529IP40 with door conforming to EN/IEC 60529 |
| IK degree of protection: | IK08 conforming to EN 50102IK08 conforming to IEC 62262 |
| Ambient air temperature for operation: | -15...60 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480927928 |
|---|---|
| Substitution_texte: | Produit non disponible. |
