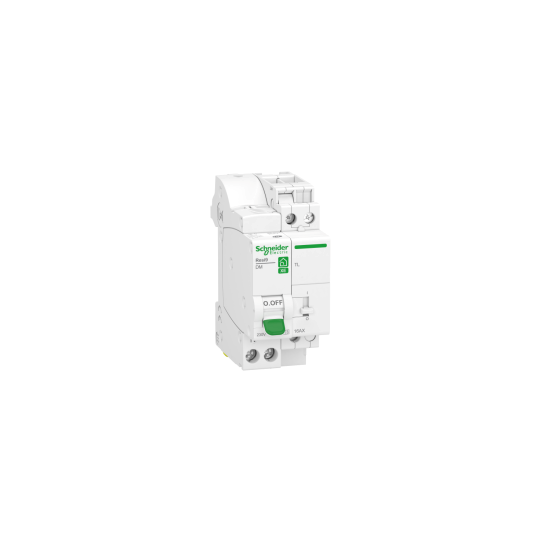

Resi9 XE - breaker with impulse relay - 1P+N - 1 NO - 16 A - coil 230 V - R9ECL616
SKU : R9ECL616
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Resi9 XE - breaker with impulse relay - 1P+N - 1 NO - 16 A - coil 230 V - R9ECL616
DESCRIPTION
| Range: | Resi9 |
|---|---|
| Product name: | Resi9 XE TL |
| Product or component type: | Impulse relay |
| Device application: | Remote control |
| Protection device type: | 1 x miniature circuit breaker (MCB) - 1P + N - 16 A - 230 V - C curve - 3000 A |
| Poles description: | 1P + N |
| Pole contact composition: | 1 NO |
| Network type: | AC |
| Standards: | EN/IEC 60669-1EN/IEC 60669-2-2 |
| Product certifications: | NF |
| [In] rated current: | 16 A |
|---|---|
| Network frequency: | 50 Hz |
| [Ue] rated operational voltage: | 250 V AC 50 Hz |
| Control type: | Remote and manual control |
| Technology type: | Electromechanical |
| Control signal type: | Impulse |
| Switching frequency: | 5 switching operation/minute |
| Impulse duration: | 50 ms |
| Remote control type: | Illuminated push-button 3 mA |
| Local signalling: | ON/OFF indication |
| [Uc] control circuit voltage: | 230 V AC 50 Hz |
| Supply inrush power: | 19 VA |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 4 |
| Height: | 86 mm |
| Width: | 36 mm |
| Depth: | 87 mm |
| Colour: | White (RAL 9003) |
| Connections - terminals: | Plug in, topTunnel type terminals, top or bottom for 2 flexible wire(s) 0.5...1.5 mm²Tunnel type terminals, top or bottom for 2 flexible with ferrule wire(s) 0.5...1.5 mm²Tunnel type terminals, top or bottom for 2 rigid wire(s) 0.5...1.5 mm² |
| Market segment: | Residential |
| IP degree of protection: | IP20 |
|---|---|
| Ambient air temperature for operation: | -20...50 °C |
| Ambient air temperature for storage: | -40...70 °C |
| EU RoHS Directive: | CompliantMercury free |
| Code EAN: | 3606481166326 |
|---|---|
| Substitution_texte: | Product temporarily unavailable. |
