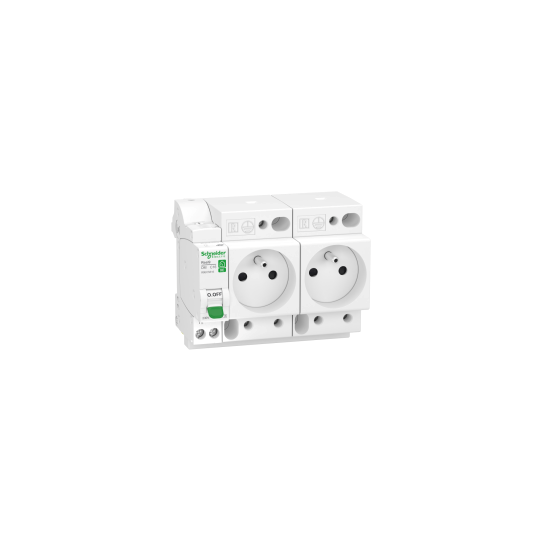

Resi9 XE - breaker with modular socket-outlet - 2 x 1P+N+E - 16 A - 250 V - R9ECS616
SKU : R9ECS616
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Resi9 XE - breaker with modular socket-outlet - 2 x 1P+N+E - 16 A - 250 V - R9ECS616
DESCRIPTION
| Range: | Resi9 |
|---|---|
| Product name: | Resi9 XE PM |
| Product or component type: | Modular socket-outlet |
| Protection device type: | 1 x miniature circuit breaker (MCB) - 1P + N - 16 A - 230 V - C curve - 3000 A |
| Number of power socket outlets: | 2 |
| Poles description: | 1P + N + E |
| Outlet standard: | French |
| [In] rated current: | 16 A |
|---|---|
| Network type: | AC |
| Network frequency: | 50 Hz |
| [Ue] rated operational voltage: | 250 V AC 50 Hz |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 12 |
| Height: | 88 mm |
| Width: | 108 mm |
| Depth: | 86 mm |
| Colour: | White (RAL 9003) |
| Connections - terminals: | Plug in, topTunnel type terminal, top |
| Market segment: | Residential |
| Standards: | NF C 15-100NF C 61-303 |
|---|---|
| Product certifications: | NF |
| IP degree of protection: | IP20 |
| Ambient air temperature for operation: | -20...50 °C |
| Ambient air temperature for storage: | -40...70 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3606481166333 |
|---|---|
| Substitution_texte: | Produit non disponible. |
