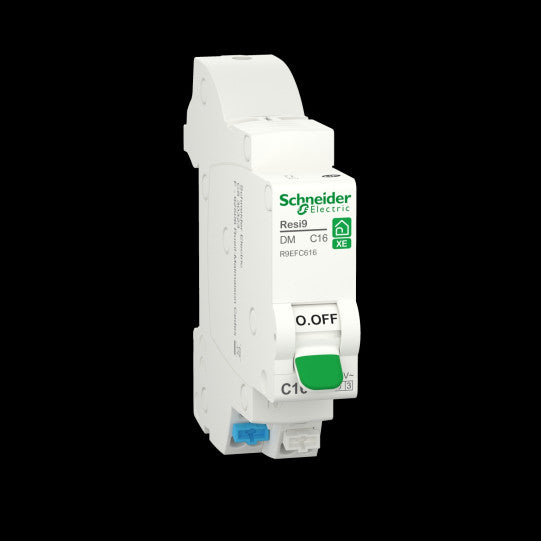

Resi9 XE - miniature circuit-breaker - 1P + N - 16 A - C Curve - 230 V - 3000 A - R9EFC616
SKU : R9EFC616
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Resi9 XE - miniature circuit-breaker - 1P + N - 16 A - C Curve - 230 V - 3000 A - R9EFC616
DESCRIPTION
| Range: | Resi9 |
|---|---|
| Product name: | Resi9 XE DM |
| Product or component type: | Miniature circuit-breaker |
| Device application: | Distribution |
| Poles description: | 1P + N |
| Number of protected poles: | 1 |
| Neutral position: | Left |
| [In] rated current: | 16 A at 30 °C conforming to EN/IEC 60898 |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Breaking capacity: | 3000 A Icn at 230 V AC 50 Hz conforming to EN/IEC 60898-1 |
| Standards: | EN/IEC 60898-1 |
| Product certifications: | CE |
| Quality labels: | NF |
| Network frequency: | 50 Hz |
|---|---|
| [Ue] rated operational voltage: | 230 V AC 50 Hz |
| Magnetic tripping limit: | 5...10 x In AC |
| Limitation class: | 3 conforming to EN/IEC 60898-1 |
| [Ui] rated insulation voltage: | 500 V |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 84 mm |
| Width: | 18 mm |
| Depth: | 85.5 mm |
| Colour: | White (RAL 9003) |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 20000 cycles 230 V AC 50 Hz conforming to EN/IEC 60898-1 |
| Connections - terminals: | Plug in (top)Screwless terminals (bottom) - 2 x 1.5...2 x 2.5 mm² - rigidScrewless terminals (bottom) - 2 x 1.5...2 x 2.5 mm² - flexible |
| Wire stripping length: | 13 mm for bottom connection |
| Earth-leakage protection: | Without |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
|---|---|
| Pollution degree: | 2 conforming to EN/IEC 60898-1 |
| Overvoltage category: | III |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -25...40 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481160409 |
|---|---|
| Substitution_texte: | Product temporarily unavailable. |
