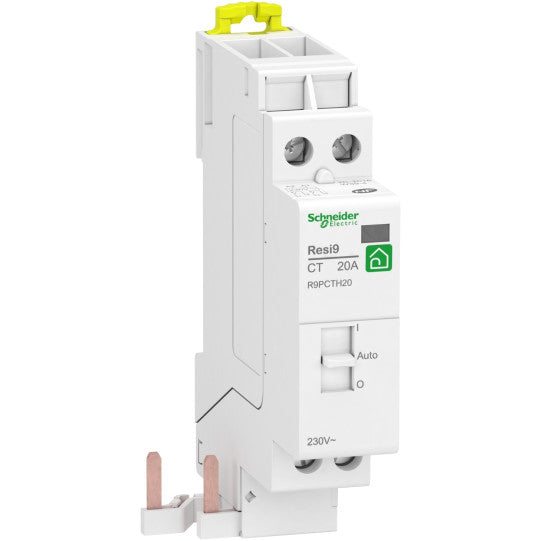

Resi9 XP - contactor - manually operated - 1P+N - 2 NO - 20 A - R9PCTH20
DESCRIPTION
| Range: | Resi9 |
|---|---|
| Product name: | Resi9 XP CT |
| Product or component type: | Contactor |
| Device application: | Control circuit |
| Poles description: | 1P + N |
| Pole contact composition: | 2 NO |
| Auxiliary contact composition: | Without |
| Standards: | EN 61095 |
| Product certifications: | NF |
| [In] rated current: | 20 A |
|---|---|
| Network type: | AC |
| Network frequency: | 50/60 Hz |
| [Ue] rated operational voltage: | 250 V AC 50 Hz |
| [Ui] rated insulation voltage: | 500 V AC |
| [Uimp] rated impulse withstand voltage: | 2.5 kV |
| Control type: | Remote and manual control |
| Control signal type: | Maintained |
| Switching frequency: | 100 switching operations/day |
| [Uc] control circuit voltage: | 230 V AC 50/60 Hz |
| Hold-in power consumption in VA: | 3.8 VA |
| Inrush power in VA: | 15 VA |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 86.5 mm |
| Width: | 33.5 mm |
| Depth: | 68 mm |
| Colour: | White (RAL 9003) |
| Electrical durability: | 100000 cycles 230 V AC 50 Hz conforming to EN 61095 |
| Connections - terminals: | Power circuit: tunnel type terminals, bottom for 1 flexible wire(s) 4 mm²Power circuit: tunnel type terminals, bottom for 2 flexible wire(s) 1.5 mm²Power circuit: tunnel type terminals, bottom for 2 flexible with ferrule wire(s) 1.5 mm²Power circuit: tunnel type terminals, bottom for 2 rigid wire(s) 1.5 mm²Control circuit: tunnel type terminals, top for 2 flexible wire(s) 0.5...1.5 mm²Control circuit: tunnel type terminals, top for 2 flexible with ferrule wire(s) 0.5...1.5 mm²Control circuit: tunnel type terminals, top for 2 rigid wire(s) 0.5...1.5 mm² |
| Market segment: | Residential |
| IP degree of protection: | IP20 |
|---|---|
| Pollution degree: | 2 |
| Ambient air temperature for operation: | -20...50 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481166371 |
|---|---|
| Substitution_texte: | Produit non disponible. |
