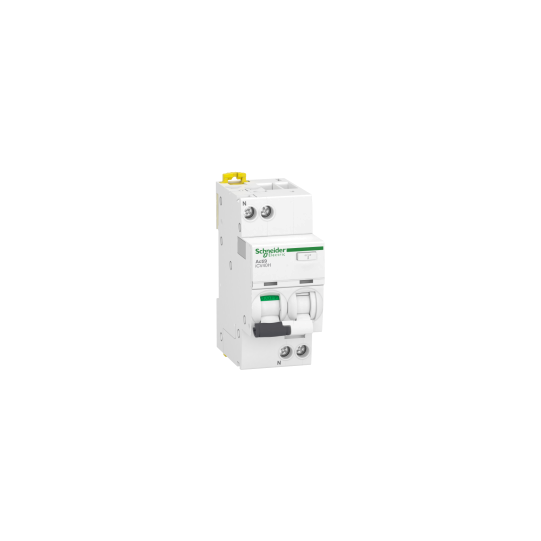

Residual current breaker with overcurrent protection (RCBO), Acti9 iCV40H, 1P+N, 10A, C curve, 10000A, A type, 300mA - A9DC8610
SKU : A9DC8610
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Residual current breaker with overcurrent protection (RCBO), Acti9 iCV40H, 1P+N, 10A, C curve, 10000A, A type, 300mA - A9DC8610
DESCRIPTION
| Range: | Acti9 |
|---|---|
| Product name: | Acti9 iCV40 |
| Product or component type: | Residual current breaker with overcurrent protection (RCBO) |
| Device short name: | iCV40H |
| Device application: | Distribution |
| Poles description: | 1P + N |
| Number of protected poles: | 1 |
| Neutral position: | Left |
| [In] rated current: | 10 A |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Earth-leakage sensitivity: | 300 mA |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type A |
| Breaking capacity: | 10000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 |
| Suitability for isolation: | Yes conforming to EN/IEC 60947-2 |
| Quality labels: | VDEEAC |
| Device location in system: | Outgoer |
|---|---|
| Network frequency: | 50/60 Hz |
| [Ue] rated operational voltage: | 230 V AC 50/60 Hz |
| Magnetic tripping limit: | 5...10 x In |
| Residual current tripping technology: | Voltage independent |
| [Ics] rated service breaking capacity: | 7500 A 75 % x Icn at 230 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 |
| Rated breaking and making capacity: | Idm 6000 A at 230 V AC 50/60 Hz conforming to EN 61009-2-1Idm 500 A at 230 V AC 50/60 Hz conforming to IEC 61009-2-1 |
| Limitation class: | 3 conforming to EN/IEC 61009-2-1 |
| [Ui] rated insulation voltage: | 400 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | ON/OFF indicationFault indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Comb busbar and distribution block compatibility: | Top or bottom: tooth |
| Connection pitch: | 9 mm between phase and neutral |
| 9 mm pitches: | 4 |
| Height: | 85 mm |
| Width: | 36 mm |
| Depth: | 73 mm |
| Net weight: | 210 g |
| Colour: | White |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 20000 cycles |
| Locking options description: | SealablePadlocking device |
| Connections - terminals: | Tunnel type terminals top or bottom 1...16 mm² rigidTunnel type terminals top or bottom 1...10 mm² flexible |
| Wire stripping length: | 14 mm for top or bottom connection |
| Tightening torque: | 2 N.m top or bottom |
| Earth-leakage protection: | Integrated |
| Compatibility code: | ICV40H |
| Standards: | EN/IEC 61009-2-1 |
|---|---|
| Product certifications: | CE |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree: | 3 |
| Overvoltage category: | III conforming to IEC 60364 |
| Electromagnetic compatibility: | 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-1 |
| Relative humidity: | 95 % at 55 °C |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606489444655 |
|---|
