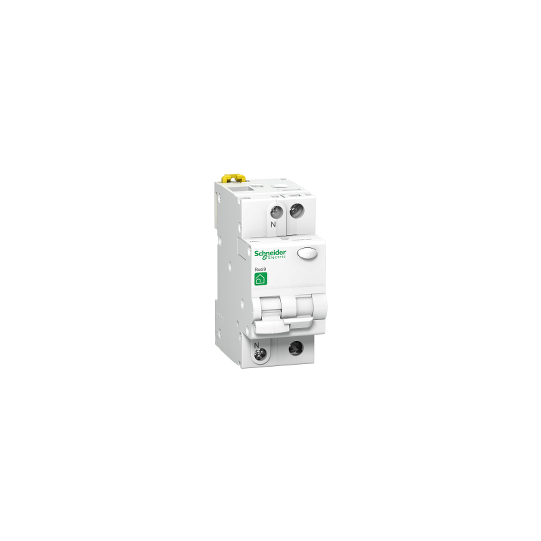

Residual current breaker with overcurrent protection, Resi9, 1P+N, 20A, C curve, 4500A, AC type, 30mA - R9D31220
SKU : R9D31220
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Residual current breaker with overcurrent protection, Resi9, 1P+N, 20A, C curve, 4500A, AC type, 30mA - R9D31220
DESCRIPTION
| Range: | Resi9 |
|---|---|
| Product name: | Resi9 RCBO |
| Product or component type: | Residual current breaker with overcurrent protection (RCBO) |
| Device application: | Distribution |
| Poles description: | 1P + N |
| Neutral position: | Left |
| Number of protected poles: | 1 |
| [In] rated current: | 20 A |
| Network type: | AC |
| Trip unit technology: | Thermal-magnetic |
| Curve code: | C |
| Earth-leakage sensitivity: | 30 mA conforming to EN/IEC 61009-2-1 |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type AC |
| Breaking capacity: | 4500 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 61009-2-1 |
| Quality labels: | CEBEC |
| Network frequency: | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage: | 230 V AC 50/60 Hz |
| Magnetic tripping limit: | 5...10 x In |
| Surge current: | 250 A |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Comb busbar and distribution block compatibility: | Bottom: biconnect |
| Connection pitch: | 9 mm between phase and neutral |
| 9 mm pitches: | 4 |
| Height: | 74 mm |
| Width: | 36 mm |
| Depth: | 90 mm |
| Net weight: | 0.19 kg |
| Colour: | White |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 20000 cycles |
| Connections - terminals: | Tunnel type terminals (top or bottom) - Tunnel type terminals (top or bottom) - |
| Wire stripping length: | 14 mm for top or bottom connection |
| Tightening torque: | 2 N.m top or bottom |
| Earth-leakage protection: | Integrated |
| Compatibility code: | Resi9 RCBO |
| Standards: | EN/IEC 61009-2-1 |
|---|---|
| Product certifications: | EAC |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -25...40 °C |
| Ambient air temperature for storage: | -30...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480508905 |
|---|
