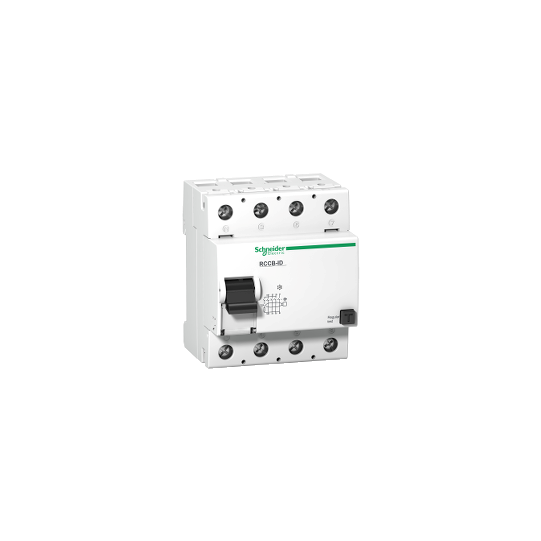

residual current circuit breaker ID - 4 poles - 125 A - class A 30 mA - 16924
SKU : 16924
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
residual current circuit breaker ID - 4 poles - 125 A - class A 30 mA - 16924
DESCRIPTION
| Range of product: | ID RCCB |
|---|---|
| Range: | Acti9 |
| Product name: | Acti9 RCCB-ID |
| Product or component type: | Residual current circuit breaker (RCCB) |
| Device short name: | RCCB-ID |
| Poles description: | 4P |
| Neutral position: | Left |
| [In] rated current: | 125 A |
| Network type: | AC |
| Earth-leakage sensitivity: | 30 mA |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type A |
| Rated breaking and making capacity: | Im = 1250 A 400 V conforming to IEC 61008 |
| Rated conditional short-circuit current: | Inc 10 kA 125 A |
| Device location in system: | Outgoer |
|---|---|
| Network frequency: | 50/60 Hz |
| [Ue] rated operational voltage: | 400 V AC 50 Hz conforming to IEC 61008 |
| Residual current tripping technology: | Electromechanical |
| [Ui] rated insulation voltage: | 440 V AC 50 Hz conforming to IEC 61008-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 61008-1 |
| Control type: | Toggle |
| Mounting mode: | Fixed |
| Mounting support: | 35 mm symmetrical DIN rail |
| Connection pitch: | 18 mm between phases |
| 9 mm pitches: | 8 |
| Height: | 86 mm |
| Width: | 72 mm |
| Depth: | 76 mm |
| Net weight: | 420 g |
| Colour: | Grey |
| Mechanical durability: | 5000 cycles |
| Electrical durability: | 2000 cycles |
| Provision for padlocking: | Padlockable |
| Connections - terminals: | Tunnel type terminals2 cable(s) 1.5...16 mm² flexibleTunnel type terminals2 cable(s) 1.5...16 mm² rigidTunnel type terminals1 cable(s) 1.5...50 mm² rigidTunnel type terminals1 cable(s) 1.5...35 mm² flexibleTunnel type terminals1 cable(s) 1.5...35 mm² flexible with ferruleTunnel type terminals2 cable(s) 1.5...16 mm² flexible with ferrule |
| Wire stripping length: | 11 mm |
| Tightening torque: | 3 N.m |
| Compatibility code: | ID_RCCB |
| Market segment: | Small commercial |
| Standards: | IEC 60947-3IEC 60947-1IEC 61008 |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree: | 3 |
| Tropicalisation: | 2 conforming to IEC 61008 |
| Relative humidity: | 95 % at 55 °C |
| Operating altitude: | 2000 m |
| Ambient air temperature for operation: | -25...40 °C |
| Ambient air temperature for storage: | -40...85 °C |
| REACh Regulation: | Reference contains Substances of Very High Concern above the thresholdEU RoHS Directive |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3303430169246 |
|---|
