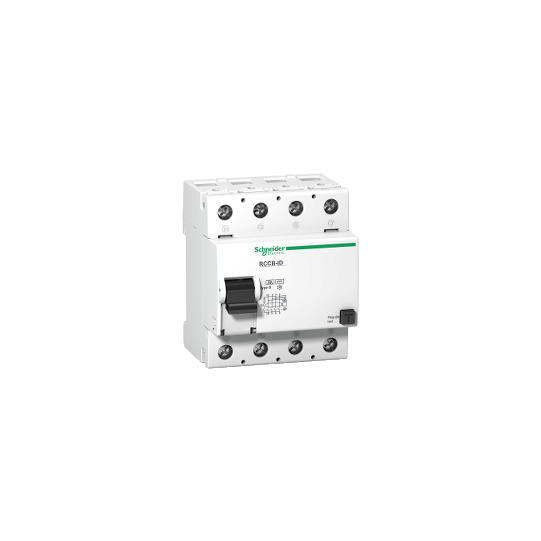

residual current circuit breaker ID - 4 poles - 125 A - class B 30 mA - 16763
SKU : 16763
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
residual current circuit breaker ID - 4 poles - 125 A - class B 30 mA - 16763
DESCRIPTION
| Range of product: | ID RCCB |
|---|---|
| Range: | Acti 9 |
| Product name: | Acti 9 RCCB-ID |
| Product or component type: | Residual current circuit breaker (RCCB) |
| Device short name: | RCCB-ID |
| Poles description: | 4P |
| Neutral position: | Left |
| [In] rated current: | 125 A |
| Network type: | AC |
| Earth-leakage sensitivity: | 30 mA |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type B |
| Rated breaking and making capacity: | Im = 1250 A conforming to IEC 61008 |
| Rated conditional short-circuit current: | Inc 10 kA 125 A |
| Device location in system: | Outgoer |
|---|---|
| Network frequency: | 50/60 Hz |
| [Ue] rated operational voltage: | 230/400 V |
| [Ui] rated insulation voltage: | 440 V AC 50 Hz conforming to IEC 61008-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV conforming to IEC 61008-1 |
| 9 mm pitches: | 8 |
| Height: | 86 mm |
| Width: | 72 mm |
| Depth: | 76 mm |
| Product weight: | 450 g |
| Colour: | Grey |
| Mechanical durability: | 5000 cycles |
| Electrical durability: | 2000 cycles |
| Connections - terminals: | Tunnel type terminals2 cable(s) 1.5...16 mm² flexibleTunnel type terminals2 cable(s) 1.5...16 mm² rigidTunnel type terminals1 cable(s) 1.5...50 mm² rigidTunnel type terminals1 cable(s) 1.5...35 mm² flexibleTunnel type terminals1 cable(s) 1.5...35 mm² flexible with ferruleTunnel type terminals2 cable(s) 1.5...16 mm² flexible with ferrule |
| Wire stripping length: | 11 mm |
| Tightening torque: | 3 N.m |
| Compatibility code: | ID_RCCB |
| Market segment: | Small commercial |
| Standards: | IEC 61008VDE 0664EN 61008 |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree: | 3 |
| Tropicalisation: | 2 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -25...40 °C |
| Ambient air temperature for storage: | -40...85 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3303430167631 |
|---|---|
| Substitution_texte: | Product not available. Here is the equivalent reference that we offer: A9R41492 - Acti9 RCCB-ID - residual current circuit breaker - 4P - 125A Type B- 30mA |
