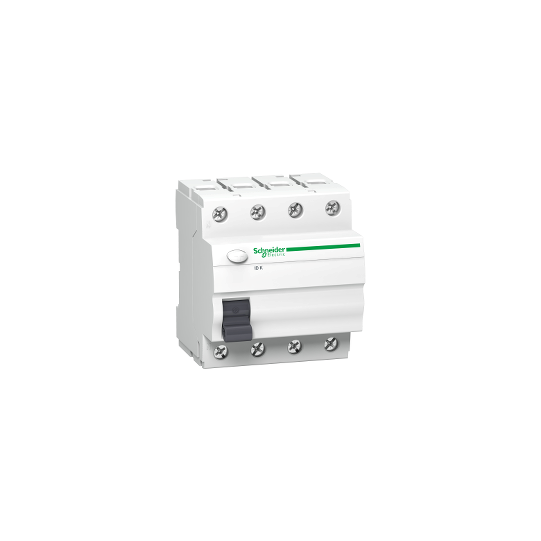

Residual current circuit breaker (RCCB), Acti9 ID K, 4P, 40A, A type, 30mA - A9Z01440
SKU : A9Z01440
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Residual current circuit breaker (RCCB), Acti9 ID K, 4P, 40A, A type, 30mA - A9Z01440
DESCRIPTION
| Range of product: | Acti9 |
|---|---|
| Range: | Acti9 |
| Product name: | Acti9 ID K |
| Product or component type: | Residual current circuit breaker (RCCB) |
| Device short name: | ID K |
| Poles description: | 4P |
| Neutral position: | Left |
| [In] rated current: | 40 A |
| Network type: | AC |
| Earth-leakage sensitivity: | 30 mA |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type A |
| Quality labels: | VDE |
| Device location in system: | Outgoer |
|---|---|
| Network frequency: | 50/60 Hz |
| [Ue] rated operational voltage: | 380...415 V AC 50 Hz |
| Residual current tripping technology: | Voltage independent |
| Rated breaking and making capacity: | Idm 500 AIm 500 A |
| Rated conditional short-circuit current: | GL63: Inc 4.5 kAK60: Inc 6 kA |
| [Ui] rated insulation voltage: | 440 V AC 50 Hz |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Surge current: | 250 A |
| Contact position indicator: | No |
| Control type: | Toggle |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Comb busbar and distribution block compatibility: | Bottom: fork |
| Connection pitch: | 18 mm between phases18 mm between phase and neutral |
| 9 mm pitches: | 8 |
| Height: | 81 mm |
| Width: | 72 mm |
| Depth: | 68 mm |
| Colour: | White |
| Mechanical durability: | 5000 cycles |
| Electrical durability: | AC-1: 2000 cycles |
| Connections - terminals: | Biconnect top or bottom 1...35 mm² rigidBiconnect top or bottom 1...25 mm² flexible |
| Wire stripping length: | 14 mm for top or bottom connection |
| Tightening torque: | 3.5 N.m top or bottom |
| Market segment: | Small commercialResidential |
| Compatibility code: | ID K |
| Standards: | EN/IEC 61008-1EN/IEC 61008-2-1 |
|---|---|
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Pollution degree: | 2 |
| Electromagnetic compatibility: | 8/20 µs impulse withstand, 200 A conforming to EN/IEC 61008-1 |
| Ambient air temperature for operation: | -25...40 °C |
| Ambient air temperature for storage: | -30...70 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480482786 |
|---|
