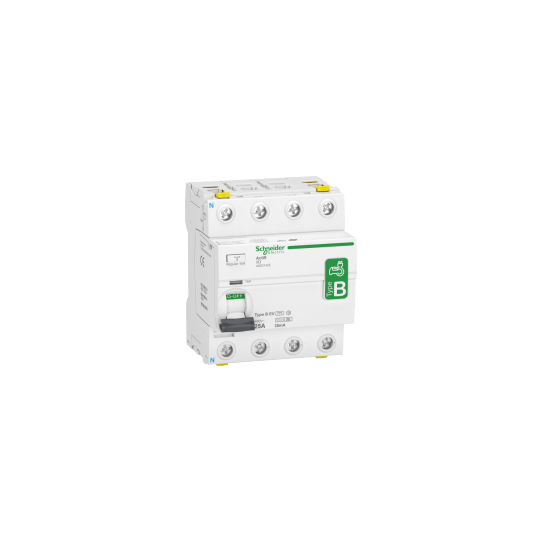

Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, B-EV (Electric Vehicle) type, 30mA, double terminal - A9Z51425
SKU : A9Z51425
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Residual current circuit breaker (RCCB), Acti9 iID, 4P, 25A, B-EV (Electric Vehicle) type, 30mA, double terminal - A9Z51425
DESCRIPTION
| Range: | Acti9 |
|---|---|
| Product name: | Acti9 iID |
| Product or component type: | Residual current circuit breaker (RCCB) |
| Device short name: | iID |
| Device application: | Electrical Vehicle charger |
| Poles description: | 4P |
| Neutral position: | Left |
| [In] rated current: | 25 A |
| Network type: | AC |
| Earth-leakage sensitivity: | 30 mA |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type B-EV (Electric Vehicle) |
| Quality labels: | VDENF |
| Device location in system: | OutgoerGroup incomer |
|---|---|
| Network frequency: | 50 Hz |
| [Ue] rated operational voltage: | 400 V AC 50 Hz |
| Rated breaking and making capacity: | Idm 1500 AIm 1500 A |
| Rated conditional short-circuit current: | 10 kA |
| [Ui] rated insulation voltage: | 500 V |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| Contact position indicator: | Yes |
| Control type: | Toggle |
| Local signalling: | Trip indicatorON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| Comb busbar and distribution block compatibility: | Top or bottom: tooth |
| Connection pitch: | 18 mm |
| 9 mm pitches: | 8 |
| Height: | 88 mm |
| Width: | 72 mm |
| Depth: | 79 mm |
| Net weight: | 415 g |
| Colour: | White |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 15000 cycles |
| Locking options description: | Padlocking device |
| Connections - terminals: | Double terminal front 1...35 mm² rigidDouble terminal front 1...25 mm² flexibleDouble terminal front 1...25 mm² flexible with ferruleDouble terminal back 1...25 mm² rigidDouble terminal back 1...16 mm² flexibleDouble terminal back 1...16 mm² flexible with ferrule |
| Wire stripping length: | 14 mm for top or bottom connection |
| Tightening torque: | 3.5 N.m top or bottom |
| Standards: | IEC 61008-2-1IEC/EN 62423EN 61008-2-1 |
|---|---|
| Product certifications: | CCCKC |
| IP degree of protection: | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| IK degree of protection: | IK05 |
| Pollution degree: | 3 |
| Overvoltage category: | IV |
| Electromagnetic compatibility: | 8/20 µs impulse withstand, 3 kA conforming to EN/IEC 61008-1 |
| Operating altitude: | 0...2000 m |
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606482038561 |
|---|
