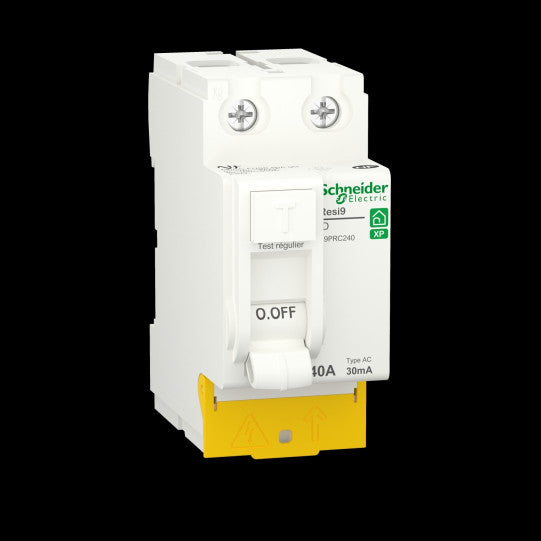

Residual current circuit breaker (RCCB), Resi9 XP ID, 2P, 40A, AC type, 30mA, 230VAC, 2 modules - R9PRC240
SKU : R9PRC240
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Residual current circuit breaker (RCCB), Resi9 XP ID, 2P, 40A, AC type, 30mA, 230VAC, 2 modules - R9PRC240
DESCRIPTION
| Range: | Resi9 |
|---|---|
| Product name: | Resi9 XP ID |
| Product or component type: | Residual current circuit breaker (RCCB) |
| Poles description: | 2P |
| Neutral position: | Left |
| [In] rated current: | 40 A at 30 °C conforming to EN/IEC 61008 |
| Network type: | AC |
| Earth-leakage sensitivity: | 30 mA conforming to EN/IEC 61008 |
| Earth-leakage protection time delay: | Instantaneous |
| Earth-leakage protection class: | Type AC |
| Rated breaking and making capacity: | Im 500 A conforming to EN/IEC 61008 |
| Rated conditional short-circuit current: | Inc 3 kA |
| Quality labels: | NF |
| Network frequency: | 50 Hz |
|---|---|
| [Ue] rated operational voltage: | 230 V AC 50 Hz |
| [Ui] rated insulation voltage: | 440 V |
| [Uimp] rated impulse withstand voltage: | 4 kV |
| Contact position indicator: | Yes |
| Surge current: | 250 A |
| Control type: | Toggle |
| Local signalling: | ON/OFF indication |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 4 |
| Height: | 81 mm |
| Width: | 36 mm |
| Depth: | 73 mm |
| Product weight: | 180 g |
| Embedding depth: | 43.5 mm |
| Colour: | White (RAL 9003) |
| Mechanical durability: | 20000 cycles |
| Electrical durability: | 10000 cycles |
| Connections - terminals: | Tunnel type terminals (top or bottom) - 1...35 mm² - rigidTunnel type terminals (top or bottom) - 1...25 mm² - flexibleTunnel type terminals (top or bottom) - 1...25 mm² - flexible with ferrule |
| Wire stripping length: | 15 mm for top or bottom connection |
| Tightening torque: | 3.5 N.m top or bottom |
| Standards: | EN/IEC 61008 |
|---|---|
| Product certifications: | CE |
| IP degree of protection: | IP20 |
| Pollution degree: | 2 |
| Electromagnetic compatibility: | 8/20 µs impulse withstand, 250 A conforming to IEC 61008 |
| Tropicalisation: | 2 conforming to IEC 60068-1 |
| Relative humidity: | 95 % at 55 °C |
| Ambient air temperature for operation: | -5...40 °C |
| Ambient air temperature for storage: | -40...80 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606481102683 |
|---|---|
| Substitution_texte: | Produit non disponible. |
