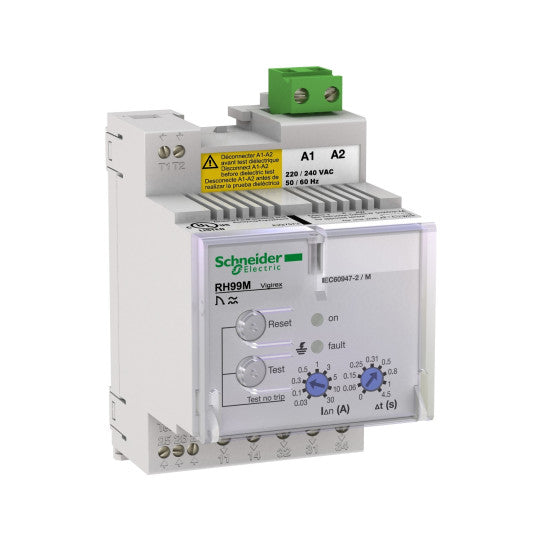

residual current protection relay, Vigirex RH99M, 30 mA to 30 A, 220/240 VAC 50/60 Hz, DIN rail mounting - 56173
SKU : 56173
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
residual current protection relay, Vigirex RH99M, 30 mA to 30 A, 220/240 VAC 50/60 Hz, DIN rail mounting - 56173
DESCRIPTION
| Range: | VigiPacT |
|---|---|
| Device short name: | RH99M |
| Product or component type: | Residual current protection relay |
| Relay application: | Protection relay |
| Mounting support: | DIN rail |
| Earth-leakage protection class: | Type A |
| Type of setting: | Selector |
| Residual earth-leakage sensitity adjustment type: | Adjustable 9 settings |
| Earth leakage current: | 0.03...30 A |
| Residual earth-leakage time delay adjustment type: | Instantaneous for 0.03 AAdjustable 9 settings 0...4.5 s for 0.03...30 A |
| Range compatibility: | TOA earth leakage current sensor A earth leakage current sensor L earth leakage current sensor |
| [Ithe] conventional enclosed thermal current: | 8 A |
| Minimum load: | 10 mA at 12 V |
| [Us] rated supply voltage: | 220...240 V AC 50/60 Hz 55...110 % |
| Power consumption in VA: | 4 VA |
| Network rated voltage: | 1000 V - AC at 50/60 Hz (maximum) 1000 V - AC at 400 Hz (maximum) |
| Earthing system: | TN-STTIT |
| [Uimp] rated impulse withstand voltage: | 8 kV |
| Reset: | Manual reset |
| Test function: | Remote testLocal |
|---|---|
| Monitoring: | Electronics (continuous) Power supply (continuous) Relay/sensor link (continuous) |
| Type of measurement: | Earth fault current internal measurement, range: 80...100 % |
| Tamperproof of settings: | Protected by sealable cover |
| Connections - terminals: | Auxiliary power supply: terminal block cable(s) 0.2...2.5 mm² flexible AWG 24...AWG 12Auxiliary power supply: terminal block cable(s) 0.2...2.5 mm² rigid AWG 24...AWG 12Auxiliary power supply: terminal block cable(s) 0.25...2.5 mm² flexible AWG 24...AWG 12Fault: screw terminal cable(s) 0.2...2.5 mm² flexible AWG 24...AWG 12Fault: screw terminal cable(s) 0.2...4 mm² rigid AWG 24...AWG 12Fault: screw terminal cable(s) 0.25...2.5 mm² flexible AWG 24...AWG 12Relay test and fault reset: screw terminal cable(s) 0.14...1 mm² flexible AWG 26...AWG 16Relay test and fault reset: screw terminal cable(s) 0.14...1.5 mm² rigid AWG 26...AWG 16Relay test and fault reset: screw terminal cable(s) 0.25...0.5 mm² flexible AWG 26...AWG 16Sensor: screw terminal cable(s) 0.14...1 mm² flexible AWG 26...AWG 16Sensor: screw terminal cable(s) 0.14...1.5 mm² rigid AWG 26...AWG 16Sensor: screw terminal cable(s) 0.25...0.5 mm² flexible AWG 26...AWG 16Voltage presence: screw terminal cable(s) 0.2...2.5 mm² flexible AWG 24...AWG 12Voltage presence: screw terminal cable(s) 0.2...4 mm² rigid AWG 24...AWG 12Voltage presence: screw terminal cable(s) 0.25...2.5 mm² flexible AWG 24...AWG 12 |
| Wire stripping length: | Auxiliary power supply: 7 mm for top connectionFault: 8 mm for bottom connectionRelay test and fault reset: 5 mm for bottom connectionSensor: 5 mm for top connectionVoltage presence: 8 mm for bottom connection |
| Tightening torque: | Auxiliary power supply: 0.6 N.m topFault: 0.6 N.m bottomRelay test and fault reset: 0.25 N.m bottomSensor: 0.25 N.m topVoltage presence: 0.6 N.m bottom |
| 9 mm pitches: | 6 |
| Width: | 54 mm |
| Height: | 81 mm |
| Depth: | 74 mm |
| Product weight: | 0.3 kg |
| IP degree of protection: | IP40 on front face: conforming to EN/IEC 60529IP30 on side parts: conforming to EN/IEC 60529IP20 on connection terminals: conforming to EN/IEC 60529 |
| IK degree of protection: | IK07 conforming to EN 50102 |
| Mechanical robustness: | Fire resistance conforming to IEC 60695-2-1IK protection 2 joules: IK07 conforming to EN 50102Vibrations 13.2...100 Hz: 0.7 gVibrations 2...13.2 Hz: +/- 1 mm |
| Compatibility code: | RH99M |
| Overvoltage category: | IV |
|---|---|
| Electrical shock protection class: | Class II |
| Electromagnetic compatibility: | Conducted and radiated emissions: , B, conforming to CISPR 11Conducted radio-frequency immunity test: , 3, conforming to IEC 61000-4-6Electrostatic discharge immunity test: , 4, conforming to IEC 61000-4-2High-energy conducted susceptibility: , 4, conforming to IEC 61000-4-5Low-energy conducted susceptibility: , 4, conforming to IEC 61000-4-4Radiated susceptibility: , 3, conforming to IEC 61000-4-3 |
| Relative humidity: | 95 % at 55 °C |
| Pollution degree: | 3 conforming to IEC 60664-1 |
| Ambient air temperature for operation: | -35...70 °C |
| Ambient air temperature for storage: | -55...85 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3303430561736 |
|---|
