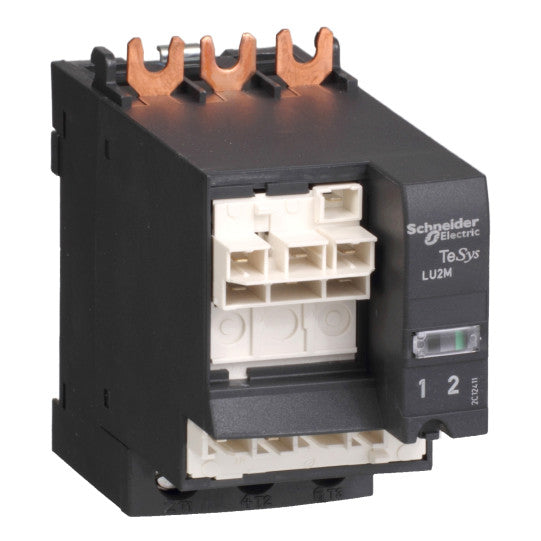

Reverser block for vertical mounting, TeSys U, 38A/690V, coil 24V DC - LU2MB0BL
SKU : LU2MB0BL
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Reverser block for vertical mounting, TeSys U, 38A/690V, coil 24V DC - LU2MB0BL
DESCRIPTION
| Range of product: | TeSys U |
|---|---|
| Range: | TeSys |
| Device short name: | LU2MB |
| Product or component type: | Reverser block |
| Device mounting: | Direct mounting |
| Device application: | Motor control |
| [Ie] rated operational current: | 38 A |
| [Uc] control circuit voltage: | 24 V DC |
| Current consumption: | 120 mA at 24 V DC I maximum while closing120 mA at 24 V DC I rms sealed |
| [Ue] rated operational voltage: | 690 V AC power circuit |
|---|---|
| Network frequency: | 40...60 Hz |
| Inrush restraint duration: | 25 ms AC15 ms DC |
| Operating time: | 150 ms with change of direction75 ms without change of direction |
| Standards: | EN 60947-6-2IEC 60947-6-2UL 60947-4-1, with phase barrierCSA C22.2 No 60947-4-1, with phase barrier |
| Product certifications: | CEULCSACCCEACASEFAATEXMarine |
| [Ui] rated insulation voltage: | 690 V conforming to IEC 60947-6-2600 V conforming to UL 60947-4-1600 V conforming to CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-6-2 |
| Fixing mode: | Plug-in |
| Connections - terminals: | Control circuit: screw clamp terminals 1 cable(s) 0.34...1.5 mm² (external diameter: 3 mm) flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 0.75...1.5 mm² (external diameter: 3 mm) flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 0.75...1.5 mm² (external diameter: 3 mm) rigidControl circuit: screw clamp terminals 2 cable(s) 0.34...1.5 mm² (external diameter: 3 mm) flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 0.75...1.5 mm² (external diameter: 3 mm) flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 0.75...1.5 mm² (external diameter: 3 mm) rigidPower circuit: screw clamp terminals 1 cable(s) 1...10 mm² (external diameter: 4 mm) rigidPower circuit: screw clamp terminals 1 cable(s) 1...6 mm² (external diameter: 4 mm) flexible with cable endPower circuit: screw clamp terminals 1 cable(s) 2.5...10 mm² (external diameter: 4 mm) flexible without cable endPower circuit: screw clamp terminals 2 cable(s) 1...6 mm² (external diameter: 4 mm) flexible with cable endPower circuit: screw clamp terminals 2 cable(s) 1...6 mm² (external diameter: 4 mm) rigidPower circuit: screw clamp terminals 2 cable(s) 1.5...6 mm² (external diameter: 4 mm) flexible without cable end |
| Tightening torque: | Control circuit: 0.8...1.2 N.m flat screwdriver 5 mmControl circuit: 0.8...1.2 N.m Philips No 2 screwdriver 5 mmPower circuit: 1.9...2.5 N.m flat screwdriver 6 mmPower circuit: 1.9...2.5 N.m Philips No 2 screwdriver 6 mm |
| Width: | 45 mm |
| Height: | 80 mm |
| Depth: | 105 mm |
| Product weight: | 0.4 kg |
| Compatibility code: | LU2MB |
| IP degree of protection: | IP20 conforming to IEC 60947-1 (front panel and wired terminals)IP20 conforming to IEC 60947-1 (other faces)IP40 conforming to IEC 60947-1 (front panel outside connection zone) |
|---|---|
| Protective treatment: | TH conforming to IEC 60068 |
| Ambient air temperature for operation: | -25...60 °C with LUCM-25...70 °C with LUCA, LUCB, LUCC, LUCD |
| Ambient air temperature for storage: | -40...85 °C |
| Fire resistance: | 960 °C parts supporting live components conforming to IEC 60695-2-12650 °C conforming to IEC 60695-2-12 |
| Operating altitude: | 2000 m |
| Shock resistance: | 10 gn power poles open conforming to IEC 60068-2-2715 gn power poles closed conforming to IEC 60068-2-27 |
| Vibration resistance: | 2 gn (f= 5...300 Hz) power poles open conforming to IEC 60068-2-274 gn (f= 5...300 Hz) power poles closed conforming to IEC 60068-2-27 |
| Resistance to electrostatic discharge: | 8 kV level 3, in open air conforming to IEC 61000-4-28 kV level 4, on contact conforming to IEC 61000-4-2 |
| Resistance to radiated fields: | 10 V/m level 3 conforming to IEC 61000-4-3 |
| Resistance to fast transients: | 2 kV class 3 serial link conforming to IEC 61000-4-44 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4 |
| Immunity to radioelectric fields: | 10 V conforming to IEC 61000-4-6 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3389110363777 |
|---|
