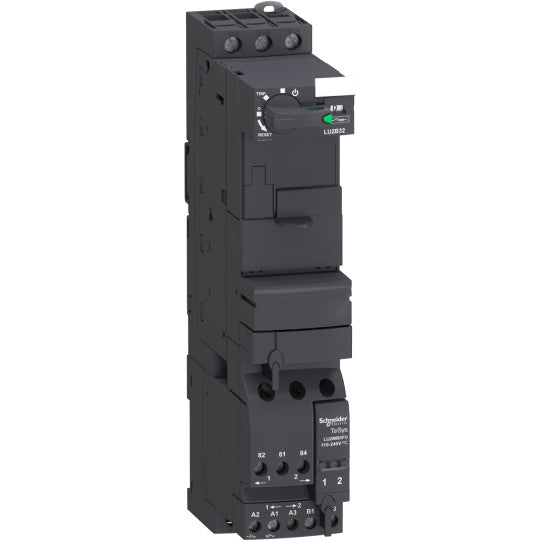

Reversing power base, TeSys U, 3P, 32A/690V, coil 110-240V AC/DC - LU2B32FU
DESCRIPTION
| Range of product: | TeSys U |
|---|---|
| Range: | TeSys |
| Product name: | TeSys U |
| Device short name: | LU2B |
| Product or component type: | Reversing power base |
| Device application: | Motor controlMotor protection |
| Product compatibility: | Control unit LUC.X6FUControl unit LUC.1XFUControl unit LUC.05FUControl unit LUC.12FUControl unit LUC.18FUControl unit LUC.32FU |
| Poles description: | 3P |
| Suitability for isolation: | Yes |
| [Ue] rated operational voltage: | 690 V AC for power circuit |
| Network frequency: | 40...60 Hz |
| [Ith] conventional free air thermal current: | 32 A |
| [Ie] rated operational current: | 28.5 A at 23 A at 500 V21 A at 690 V |
| Utilisation category: | AC-43AC-44AC-41 |
| [Ics] rated service breaking capacity: | 50 kA at 230 V50 kA at 440 V10 kA at 500 V4 kA at 690 V |
| Auxiliary contact composition: | 1 NO + 1 NC |
| Auxiliary contacts type: | type linked contacts (1 NO + 1 NC) conforming to IEC 60947-4-1 type mirror contact (1 NC) conforming to IEC 60947-1 |
| [Uc] control circuit voltage: | 110...240 V AC 50/60 Hz110...220 V DC |
| Control circuit voltage limits: | 55 V DC drop-out55 V AC drop-out88...242 V DC in operation88...264 V AC in operation |
| Typical current consumption: | 1000 mA at 110...220 V DC I maximum while closing1000 mA at 110...240 V AC I maximum while closing |
|---|---|
| Heat dissipation: | 3 W for control circuit with LUCA, LUCB, LUCC, LUCD1.8 W for control circuit with LUCM |
| Inrush restraint duration: | 25 ms AC 50/60 Hz15 ms DC |
| Safety reliability level: | B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Operating time: | 150 ms with change of direction for power circuit35 ms opening for control circuit75 ms without change of direction for power circuit50 ms closing for control circuit |
| Mechanical durability: | 15 Mcycles |
| Maximum operating rate: | 3600 cyc/h |
| Product certifications: | CEULCSACCCEACASEFAATEXMarine |
| Standards: | EN 60947-6-2IEC 60947-6-2UL 60947-4-1, with phase barrierCSA C22.2 No 60947-4-1, with phase barrier |
| [Ui] rated insulation voltage: | 690 V conforming to IEC 60947-6-2 (pollution degree 3)600 V conforming to UL 60947-4-1600 V conforming to CSA C22.2 No 60947-4-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-6-2 |
| Safe separation of circuit: | 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1 appendix N400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1 appendix N |
| Fixing mode: | Clipped (DIN rail)Screw-fixed (plate) |
| Connections - terminals: | Control circuit: screw clamp terminals 1 cable(s) 0.34...1.5 mm² flexible with cable endControl circuit: screw clamp terminals 1 cable(s) 0.75...1.5 mm² flexible without cable endControl circuit: screw clamp terminals 1 cable(s) 0.75...1.5 mm² rigidControl circuit: screw clamp terminals 2 cable(s) 0.34...1.5 mm² flexible with cable endControl circuit: screw clamp terminals 2 cable(s) 0.75...1.5 mm² flexible without cable endControl circuit: screw clamp terminals 2 cable(s) 0.75...1.5 mm² rigidPower circuit: screw clamp terminals 1 cable(s) 1...10 mm² rigidPower circuit: screw clamp terminals 1 cable(s) 1...6 mm² flexible with cable endPower circuit: screw clamp terminals 1 cable(s) 2.5...10 mm² flexible without cable endPower circuit: screw clamp terminals 2 cable(s) 1...6 mm² flexible with cable endPower circuit: screw clamp terminals 2 cable(s) 1...6 mm² rigidPower circuit: screw clamp terminals 2 cable(s) 1.5...6 mm² flexible without cable end |
| Tightening torque: | Control circuit: 0.8...1.2 N.m flat screwdriver 5 mmControl circuit: 0.8...1.2 N.m Philips no 1 screwdriver 5 mmPower circuit: 1.9...2.5 N.m flat screwdriver 6 mmPower circuit: 1.9...2.5 N.m Philips No 2 screwdriver 6 mm |
| Width: | 45 mm |
| Height: | 224 mm |
| Depth: | 126 mm |
| Product weight: | 1.27 kg |
| Compatibility code: | LU2B |
| IP degree of protection: | IP20 conforming to IEC 60947-1 (front panel and wired terminals)IP20 conforming to IEC 60947-1 (other faces)IP40 conforming to IEC 60947-1 (front panel outside connection zone) |
|---|---|
| Protective treatment: | TH conforming to IEC 60068 |
| Ambient air temperature for operation: | -25...60 °C with LUCM-25...70 °C with LUCA, LUCB, LUCC, LUCD |
| Ambient air temperature for storage: | -40...85 °C |
| Fire resistance: | 960 °C parts supporting live components conforming to IEC 60695-2-12650 °C conforming to IEC 60695-2-12 |
| Operating altitude: | 2000 m |
| Shock resistance: | 10 gn power poles open conforming to IEC 60068-2-2715 gn power poles closed conforming to IEC 60068-2-27 |
| Vibration resistance: | 2 gn (f= 5...300 Hz) power poles open conforming to IEC 60068-2-274 gn (f= 5...300 Hz) power poles closed conforming to IEC 60068-2-27 |
| Resistance to electrostatic discharge: | 8 kV level 3 in open air conforming to IEC 61000-4-28 kV level 4 on contact conforming to IEC 61000-4-2 |
| Resistance to radiated fields: | 10 V/m 3 conforming to IEC 61000-4-3 |
| Resistance to fast transients: | 2 kV class 3 serial link conforming to IEC 61000-4-44 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4 |
| Non-dissipating shock wave: | 1 kV serial mode conforming to IEC 60947-6-22 kV common mode conforming to IEC 60947-6-2 |
| Immunity to radioelectric fields: | 10 V conforming to IEC 61000-4-6 |
| Immunity to microbreaks: | 3 ms for control circuit |
| Immunity to voltage dips: | 70 % / 500 ms conforming to IEC 61000-4-11 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdEU RoHS Directive |
| Code EAN: | 3389110363005 |
|---|
