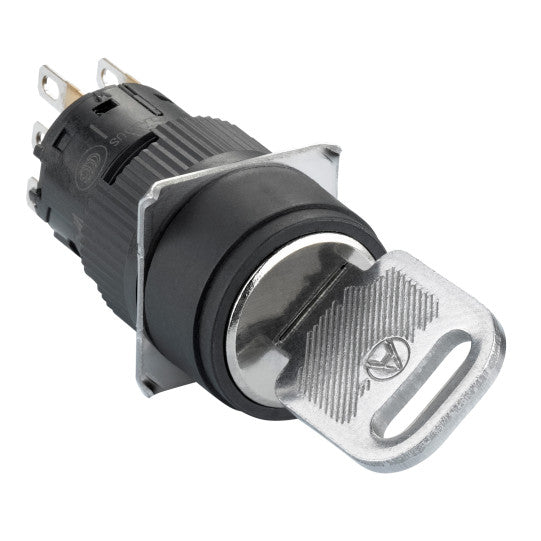

round black key selector switch Ø16-projecting keylock 2 positions-1CO - XB6EAG221P
SKU : XB6EAG221P
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
round black key selector switch Ø16-projecting keylock 2 positions-1CO - XB6EAG221P
DESCRIPTION
| Range of product: | Harmony XB6E |
|---|---|
| Product or component type: | Monolithic selector switch |
| Device short name: | XB6E |
| Bezel material: | Plastic |
| Mounting diameter: | 16 mm |
| Sale per indivisible quantity: | 5 |
| Shape of signaling unit head: | Round |
| Type of operator: | stay put |
| Operator profile: | key switch |
| Operator position information: | 2 positions |
| Key number: | 132 |
| Key withdrawal position: | In any position |
| Contacts type and composition: | 1 C/O |
| Contact operation: | Snap action |
| Connections - terminals: | Insulated faston, connection size: 2.8 x 0.5 mmSolder terminal, clamping capacity: Fast connector socket |
| Contacts material: | Gold-flashed silver |
| Product weight: | 0.02 kg |
|---|---|
| Overvoltage category: | II conforming to IEC 60536 |
| Marking: | CE |
| Mechanical durability: | 250000 cycles |
| Tightening torque: | 0.6...1 N.m |
| Contact resistance: | 50 mOhm at 1/6 V |
| Short-circuit protection: | 2 A cartridge fuse type gG |
| [Ith] conventional free air thermal current: | 3 A (fast connector socket)5 A |
| [Ie] rated operational current: | 1.5 A at 120 V, AC-12 conforming to EN/IEC 60947-5-11 A at 240 V, AC-12 conforming to EN/IEC 60947-5-10.7 A at 240 V, AC-13 conforming to EN/IEC 60947-5-11 A at 120 V, AC-13 conforming to EN/IEC 60947-5-11 A at 24 V, DC-12 conforming to EN/IEC 60947-5-10.7 A at 24 V, DC-13 conforming to EN/IEC 60947-5-10.2 A at 125 V, DC-12 conforming to EN/IEC 60947-5-10.15 A at 125 V, DC-13 conforming to EN/IEC 60947-5-1 |
| Electrical durability: | 100000 cycles, AC, 0.7 A at 220 V conforming to EN/IEC 60947-5-1 appendix C |
| Compatibility code: | XB6 |
| Ambient air temperature for storage: | -40...70 °C |
|---|---|
| Ambient air temperature for operation: | -10...55 °C |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| Standards: | UL 508CSA C22.2 No 14IEC 60947-1JIS C 852JIS C8201-5-1IEC 60947-5-1JIS C8201-1 |
| Product certifications: | CCCcURus |
| Vibration resistance: | 1 mm (f= 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 10 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110640113 |
|---|
