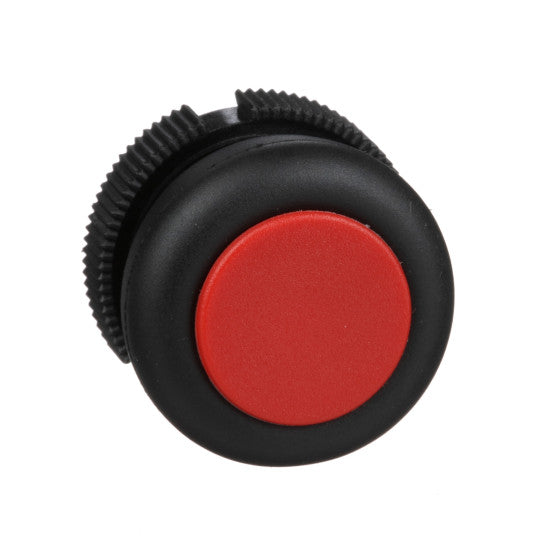

round head for pushbutton - spring return - XAC-A - red - booted - XACA9414
SKU : XACA9414
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
round head for pushbutton - spring return - XAC-A - red - booted - XACA9414
DESCRIPTION
| Range of product: | Harmony XAC |
|---|---|
| Product or component type: | Head for push-button |
| Component name: | XACA |
| Marking: | Unmarked |
|---|---|
| Operator additional information: | Booted |
| Cap/operator or lens colour: | Red |
| Product compatibility: | XACA.. |
| Mounting location: | Front of enclosure |
| Sale per indivisible quantity: | 10 |
| Standards: | CSA C22.2 No 14UL 508EN/IEC 60204-32EN/IEC 60947-5-1 |
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 15 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 100 gn conforming to IEC 60068-2-27 |
| Overvoltage category: | Class II conforming to IEC 61140 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| IK degree of protection: | IK08 conforming to EN 50102 |
| Product weight: | 0.01 kg |
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
|---|---|
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Toxic heavy metal free: | Yes |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | X |
| Code EAN: | 3389110645163 |
|---|
