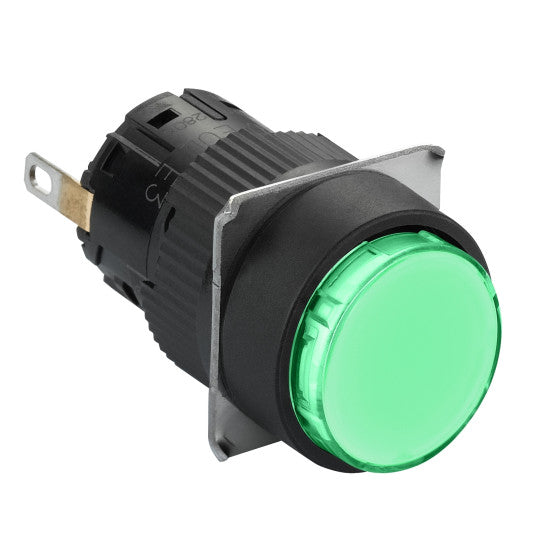

round pilot light Ø16 - IP65 - green - integral LED 24VDCpolarised - connector - XB6EAV3BP
SKU : XB6EAV3BP
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
round pilot light Ø16 - IP65 - green - integral LED 24VDCpolarised - connector - XB6EAV3BP
DESCRIPTION
| Range of product: | Harmony XB6E |
|---|---|
| Product or component type: | Monolithic pilot light |
| Device short name: | XB6E |
| Bezel material: | Plastic |
| Mounting diameter: | 16 mm |
| Sale per indivisible quantity: | 5 |
| Shape of signaling unit head: | Round |
| Cap/operator or lens colour: | Green |
| Light source: | Integral LED |
| Light block supply: | Direct |
| [Us] rated supply voltage: | 24 V DC polarised |
| Product weight: | 0.006 kg |
|---|---|
| Overvoltage category: | II conforming to IEC 60536 |
| Operating position: | Any position |
| Marking: | CE |
| Connections - terminals: | Insulated faston, connection size: 2.8 x 0.5 mmSolder terminal, clamping capacity: Fast connector socket |
| Tightening torque: | 0.6...1 N.m |
| [Ui] rated insulation voltage: | 250 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 2.5 kV conforming to IEC 60947-1 |
| Signalling type: | Steady |
| Current consumption: | 10 mA |
| Service life: | 30000 h |
| Compatibility code: | XB6 |
| Ambient air temperature for storage: | -40...70 °C |
|---|---|
| Ambient air temperature for operation: | -10...55 °C |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| Standards: | JIS C 852IEC 60947-5-1UL 508JIS C8201-5-1IEC 60947-1CSA C22.2 No 14JIS C8201-1 |
| Product certifications: | cURusCCC |
| Vibration resistance: | 1 mm (f= 10...55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 10 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110624731 |
|---|
