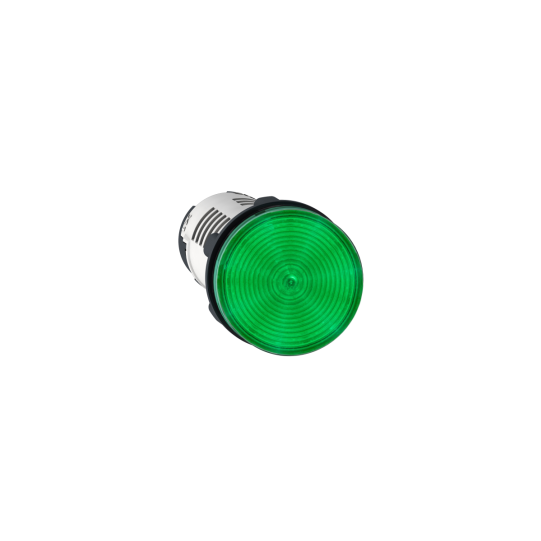

round pilot light Ø 22 - green - integral LED - 230..240 V - faston connectors - XB7EV03MP3
SKU : XB7EV03MP3
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
round pilot light Ø 22 - green - integral LED - 230..240 V - faston connectors - XB7EV03MP3
DESCRIPTION
| Range of product: | Harmony XB7 |
|---|---|
| Product or component type: | Pilot light |
| Device short name: | XB7 |
| Mounting diameter: | 22 mm |
| Sale per indivisible quantity: | 10 |
| Shape of signaling unit head: | Round |
| Cap/operator or lens colour: | Green |
| Operator additional information: | With plain lens |
| Light source: | LED |
| Bulb base: | Integral LED |
| [Us] rated supply voltage: | 230...240 V AC 50/60 Hz |
| Device presentation: | Monolithic product |
| Height: | 29 mm |
|---|---|
| Width: | 29 mm |
| Depth: | 54 mm |
| Terminals description ISO n°1: | (X1-X2)PL |
| Net weight: | 0.02 kg |
| Device mounting: | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1 |
| Fixing center: | >= 30 x 40 mm (support panel) metal - thickness: 1...6 mm>= 30 x 40 mm (support panel) plastic - thickness: 2...6 mm |
| Fixing mode: | Fixing nut beneath head: 2...2.4 N.m |
| Connections - terminals: | Faston connectors, connection size: 1 x 6.35 mm conforming to EN/IEC 60947-1Faston connectors, connection size: 2 x 2.8 mm conforming to EN/IEC 60947-1 |
| [Ui] rated insulation voltage: | 250 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN/IEC 60947-1 |
| Signalling type: | Steady |
| Supply voltage limits: | 195...264 V AC |
| Current consumption: | 16...20 mA |
| Service life: | 70000 h at rated voltage and 25 °C |
| Compatibility code: | XB7 |
| [Us] rated supply voltage: | 230...240 V |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP20 (rear face) conforming to IEC 60529IP65 (front face) conforming to IEC 60529 |
| NEMA degree of protection: | NEMA 4 conforming to UL 50 ENEMA 12 conforming to UL 50 E |
| Standards: | JIS C8201-5-1CSA C22.2 No 14EN/IEC 60947-1UL 508EN/IEC 60947-5-1JIS C8201-1 |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Electromagnetic compatibility: | Disturbing field emission class B conforming to EN 55011 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110164800 |
|---|
