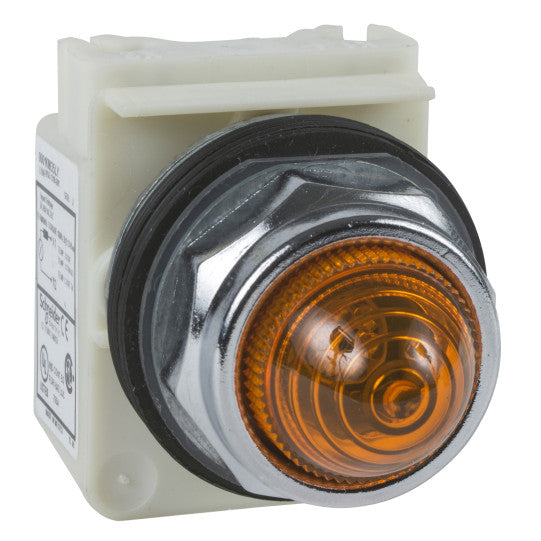

round pilot light Ø 30 - amber - incandescent BA 9s - 220/240 V AC - IP66 - 9001KP7A9
SKU : 9001KP7A9
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
round pilot light Ø 30 - amber - incandescent BA 9s - 220/240 V AC - IP66 - 9001KP7A9
DESCRIPTION
| Range of product: | Harmony 9001K |
|---|---|
| Product or component type: | Pilot light |
| Device short name: | 9001K |
| Bezel material: | Chromium plated metal |
|---|---|
| Mounting diameter: | 30 mm |
| Shape of signaling unit head: | Round |
| Lens type: | Domed plastic |
| Cap/operator or lens colour: | Amber |
| Light source: | incandescent |
| Bulb base: | BA 9s |
| Light block supply: | Via integral transformer 220...240 V AC 50/60 Hz 6 V) |
| Connections - terminals: | Screw clamp terminals, 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1 |
| Tightening torque: | 0.8 N.m conforming to IEC 60947-1 |
| Shape of screw head: | Cross slotted |
| Shape of screw head: | Cross slotted |
| Operating position: | Any position |
| [Ui] rated insulation voltage: | 250 V (pollution degree 2) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 2.5 kV conforming to IEC 60947-1 |
| Short-circuit protection: | 10 A cartridge fuse conforming to IEC 60947-5-1 |
| Light source: | Incandescent |
| [Ith] conventional free air thermal current: | 10 A |
| CAD overall width: | 54 mm |
| CAD overall height: | 70 mm |
| CAD overall depth: | 42 mm |
| [Us] rated supply voltage: | 220...240 V AC |
| Product weight: | 0.21 kg |
| Device presentation: | Complete product |
| Compatibility code: | 9001K |
| Standards: | EN/IEC 60947-1CSA C22.2 No 14EN/IEC 60947-5-1JIS C 852UL 508JIS C8201-5-1EN/IEC 60947-5-4JIS C8201-1 |
|---|---|
| Product certifications: | UL 508NEMA |
| Protective treatment: | TC |
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Vibration resistance: | 7 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 50 gn conforming to IEC 60068-2-27 |
| Overvoltage category: | Class II conforming to IEC 61140 |
| IP degree of protection: | IP66 conforming to IEC 60529 |
| NEMA degree of protection: | NEMA 1NEMA 12NEMA 13NEMA 2NEMA 3NEMA 3RNEMA 4NEMA 6 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389118040854 |
|---|
