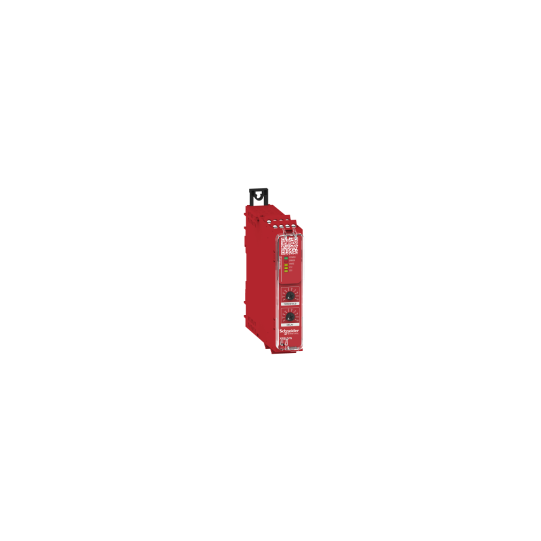

Safety module, Harmony Safety Automation, Zero speed monitoring with time delay, 24V AC/DC, screw - XPSUVN11AP
SKU : XPSUVN11AP
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Safety module, Harmony Safety Automation, Zero speed monitoring with time delay, 24V AC/DC, screw - XPSUVN11AP
DESCRIPTION
| Range of product: | Harmony Safety Automation |
|---|---|
| Product or component type: | Safety module |
| Safety module name: | XPSUVN |
| Safety module application: | For zero speed detection |
| Function of module: | Monitoring 3-phase motorMonitoring 3-phase motor with star-delta startingMonitoring 3-phase motor with variable number of polesMonitoring 3-phase motor with variable number of poles and star-delta startingMonitoring dc motorMonitoring servo motorMonitoring 3-phase motor supplied by variable speed driveMonitoring 3-phase motor supplied by servo driveControlling enegization to open of guard switch type XCSE, XCSLE, XCSLF, XCST |
| Safety level: | Can reach PL e/category 3 for normally open relay contact conforming to ISO 13849-1Can reach SILCL 3 for normally open relay contact conforming to IEC 62061Can reach SIL 3 for normally open relay contact conforming to IEC 61508 |
| Safety reliability data: | MTTFd > 30 years conforming to ISO 13849-1Dcavg = 98.9 % conforming to ISO 13849-1PFHd = 2.39E-9 1/h conforming to ISO 13849-1HFT = 1 conforming to IEC 62061PFHd = 2.39E-9 1/h conforming to IEC 62061SFF > 99% conforming to IEC 62061HFT = 1 conforming to IEC 61508-1PFHd = 2.39E-9 1/h conforming to IEC 61508-1SFF > 99% conforming to IEC 61508-1Type = B conforming to IEC 61508-1 |
| Product certifications: | TÜVcULus |
| [Us] rated supply voltage: | 24 V AC - 15...10 %24 V DC - 20...20 % |
| Output type: | Relay, 1 NO circuit(s), volt-free |
| Number of additional circuits: | 2 solid state outputs |
| Maximum power consumption in W: | 2.0 W |
|---|---|
| Maximum power consumption in VA: | 5.5 VA |
| Input voltage: | 690 V |
| Input detection threshold: | 50 mV65 mV85 mV110 mV140 mV180 mV230 mV300 mV400 mV500 mV |
| Time delay: | 0.5 s1 s2 s3 s5 s8 s12 s20 s35 s60 s |
| [Ie] rated operational current: | 5 A AC-1 for normally open relay contact3 A AC-15 for normally open relay contact5 A DC-1 for normally open relay contact3 A DC-13 for normally open relay contact |
| [Ith] conventional free air thermal current: | 6 A for NO relay output circuit |
| Associated fuse rating: | 6 A gG for relay output conforming to IEC 60947-1 |
| Standards: | IEC 60947-5-1IEC 61508-1 functional safety standardIEC 61508-2 functional safety standardIEC 61508-3 functional safety standardIEC 61508-4 functional safety standardIEC 61508-5 functional safety standardIEC 61508-6 functional safety standardIEC 61508-7 functional safety standardISO 13849-1 functional safety standardIEC 62061 functional safety standard |
| Minimum output current: | 10 mA for relay output |
| Minimum output voltage: | 5 V for relay output |
| [Ui] rated insulation voltage: | 690 V phase to phase (pollution degree 2) conforming to EN/IEC 60947-1400 V phase to earth (pollution degree 2) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 4 kV overvoltage category II conforming to EN/IEC 60947-1 |
| Local signalling: | LED green with power marking for power ONLED red with error marking for errorLED yellow with state marking for statusLED yellow with L12 marking for input line comparisonLED yellow with L32 marking for input line comparison |
| Connections - terminals: | Removable screw terminal block solid or flexible cable: 0.2...2.5 mm²Removable screw terminal block flexible with ferrule cable: 0.25...2.5 mm² single conductorRemovable screw terminal block solid or flexible cable: 0.2...1.5 mm² twin conductorRemovable screw terminal block flexible with ferrule cable: 2 x 0.25...1 mm² without cable end, with bezelRemovable screw terminal block flexible with ferrule cable: 2 x 0.5...1.5 mm² with cable end, with bezel |
| Mounting support: | 35 mm symmetrical DIN rail |
| Depth: | 120 mm |
| Height: | 100 mm |
| Width: | 22.5 mm |
| Net weight: | 0.2 kg |
| IP degree of protection: | IP20 (terminals) conforming to EN/IEC 60529IP40 (housing) conforming to EN/IEC 60529IP54 (mounting area) conforming to EN/IEC 60529 |
|---|---|
| Ambient air temperature for operation: | -25...55 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Relative humidity: | 5...95 % non-condensing |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606482034051 |
|---|
