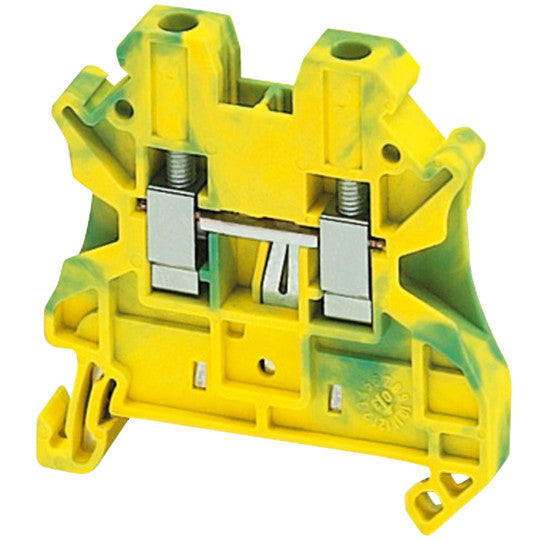

SCREW TERMINAL, PROTECTIVE EARTH, 2 POINTS, 4MM², GREEN-YELLOW - NSYTRV42PE
DESCRIPTION
| Range of product: | Linergy |
|---|---|
| Range: | Linergy |
| Product name: | Linergy TR |
| Product or component type: | Terminal block |
| Device short name: | TRV |
| Terminal block type: | Protective earth |
| Terminal block level: | 1 |
| Mounting mode: | Clip-on |
| Nominal cross section: | 4 mm² |
| Length: | 47.7 mm |
| Colour: | Green-yellow |
| Quantity per set: | Set of |
| Width: | 6.2 mm |
|---|---|
| Height: | 47.5 mm |
| Connections - terminals: | 1 x screw terminal: upstream1 x screw terminal: downstream |
| Number of terminals: | 2 |
| Connection position: | Sideways |
| Number of measurement input: | 2 |
| Cable cross section: | 0.14...6 mm², solid0.2...4 mm², flexible with cable end0.14...6 mm², flexible without cable end |
| Tightening torque: | 0.6...0.8 N.m |
| Wire stripping length: | 9 mm |
| Tool type: | Connection: screwdriverDisconnection: screwdriver |
| Material: | Polyamide 6/6: insulating case |
| Dielectric loss: | 0.01 at 1 MHz conforming to IEC 602500.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant: | 3.7 at 1 MHz |
| Resistivity: | 10000 M?.m conforming to IEC 6009310000 M?.m conforming to VDE 0303-T30 |
| Surface resistance: | 1000 G? conforming to IEC 600931000 G? conforming to VDE 0303-T30 |
| Creep resistance: | 500 CTI (> 400 kB) conforming to IEC 60093500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance: | V0, thickness0.8 mm conforming to UL 94 |
| Product weight: | 13.38 g |
| Range compatibility: | Prisma GPrisma PPrisma PHPrisma PackSpacialKaedraPragmaTeSys |
| Product compatibility: | Spacial enclosures |
| Compatibility code: | Terminal block |
| Product certifications: | VDEATEXLRCSAGLDNVEACIEC-ExcURus |
|---|---|
| Dielectric strength: | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation: | -40...130 °C conforming to IEC 60216-1-40...130 °C conforming to VDE 0304-T21 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480531965 |
|---|
