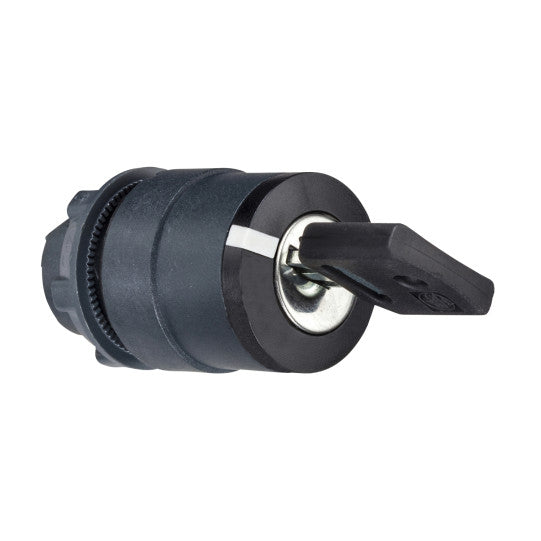

selector switch head Ø22 2-position stay put Ronis 421E - ZB5AG412
SKU : ZB5AG412
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
selector switch head Ø22 2-position stay put Ronis 421E - ZB5AG412
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Head for key selector switch |
| Device short name: | ZB5 |
| Bezel material: | Dark grey plastic |
| Mounting diameter: | 22 mm |
| Head type: | Standard |
| Sale per indivisible quantity: | 1 |
| Shape of signaling unit head: | Round |
| Type of operator: | stay put |
| Operator profile: | Black key switch |
| Operator position information: | 2 positions 90° |
| Type of keylock: | Ronis 421E |
| Key withdrawal position: | In any position |
| CAD overall width: | 29 mm |
|---|---|
| CAD overall height: | 29 mm |
| CAD overall depth: | 72 mm |
| Product weight: | 0.057 kg |
| Mechanical durability: | 1000000 cycles |
| Main group: | Selector switch |
| Group of product: | Key switch |
| Station name: | XALD 1...5 cut-outsXALK 2...5 cut-outs |
| Cap/operator or lens colour: | Black |
| Electrical composition code: | C4 for C5 for C6 for C7 for C8 for C11 for C3 for SF1 for SR1 for C15 for |
| Device presentation: | Basic element |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | ZB5 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| Overvoltage category: | Class II conforming to IEC 60536 |
| IP degree of protection: | IP66 conforming to IEC 60529IP67IP69IP69K |
| NEMA degree of protection: | NEMA 13NEMA 4X |
| Resistance to high pressure washer: | 7000000 Pa at 55 °C, distance |
| IK degree of protection: | IK06 conforming to IEC 50102 |
| Standards: | UL 508CSA C22.2 No 14EN/IEC 60947-1EN/IEC 60947-5-1EN/IEC 60947-5-4JIS C8201-5-1JIS C8201-1 |
| Product certifications: | DNVCSABVUL listedLROS (Lloyds register of shipping)GL |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110135213 |
|---|
