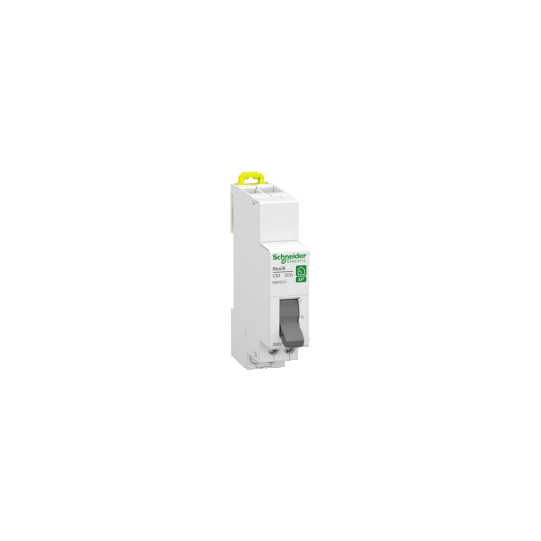

Selector switch, Resi9 CM, 3 positions - 20 A - R9PSC3
SKU : R9PSC3
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Selector switch, Resi9 CM, 3 positions - 20 A - R9PSC3
DESCRIPTION
| Range: | Resi9 |
|---|---|
| Product name: | Resi9 XP CM |
| Product or component type: | Selector switch |
| Device application: | Electrical circuit control |
| Contacts type and composition: | 1 C/O |
| Network type: | AC |
| Utilisation category: | AC-22 |
| Standards: | IEC 60669-1IEC 60947-5-1 |
| Quality labels: | NF |
| [In] rated current: | 20 A |
|---|---|
| Network frequency: | 50/60 Hz |
| [Ue] rated operational voltage: | 250 V AC 50/60 Hz |
| [Ui] rated insulation voltage: | 500 V AC 50/60 Hz |
| Control type: | Toggle 3 positions |
| Marking: | 1 - 0 - 2 |
| Mounting mode: | Clip-on |
| Mounting support: | DIN rail |
| 9 mm pitches: | 2 |
| Height: | 81 mm |
| Width: | 18 mm |
| Depth: | 77.5 mm |
| Colour: | White (RAL 9003) |
| Electrical durability: | AC-22: 30000 cycles |
| Connections - terminals: | Tunnel type terminal (bottom) 2 cable(s) 0.5...2.5 mm² rigidTunnel type terminal (bottom) 2 cable(s) 0.5...2.5 mm² flexibleTunnel type terminal (bottom) 2 cable(s) 0.5...2.5 mm² flexible with ferrule |
| IP degree of protection: | IP20 |
|---|---|
| Pollution degree: | 3 |
| Ambient air temperature for operation: | -20...50 °C |
| Ambient air temperature for storage: | -40...70 °C |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3606481166395 |
|---|---|
| Substitution_texte: | Produit non disponible. |
