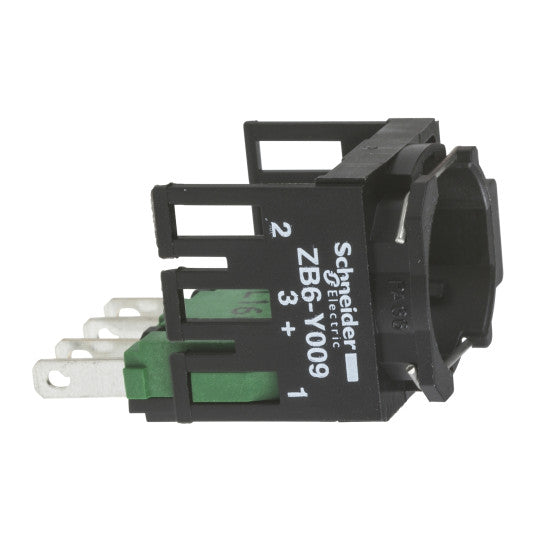

single contact block with body/fixing collar 1NO+1NC faston connector - ZB6Z5B
SKU : ZB6Z5B
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
single contact block with body/fixing collar 1NO+1NC faston connector - ZB6Z5B
DESCRIPTION
| Range of product: | Harmony XB6 |
|---|---|
| Product or component type: | Complete body for push-buttons or selector switches |
| Device short name: | ZB6 |
| Fixing collar material: | Plastic |
| Sale per indivisible quantity: | 1 |
| Contacts type and composition: | 1 NO + 1 NC |
| Contact operation: | Slow-break |
| Connections - terminals: | Faston connectorFaston connector, connection size: 2.8 x 0.5 mm |
| [Us] rated supply voltage: |
| CAD overall width: | 18 mm |
|---|---|
| CAD overall height: | 18 mm |
| CAD overall depth: | 40 mm |
| Terminals description ISO n°1: | (11-12)NC |
| Product weight: | 0.006 kg |
| Contacts usage: | Standard |
| Positive opening: | With conforming to EN/IEC 60947-5-1 appendix K |
| Operating travel: | 1 mm (NC changing electrical state)2 mm (NO changing electrical state)4.3 mm (total travel) |
| Operating force: | 1.6 N NO changing electrical state2.5 N NC changing electrical state |
| Contacts material: | Silver alloy (Ag/Ni) |
| Short-circuit protection: | 6 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ie] rated operational current: | 3 A at 120 V, AC-15, B3001.5 A at 240 V, AC-15, B3000.1 A at 250 V, DC-13, R3000.22 A at 125 V, DC-13, R300 |
| Electrical durability: | 1000000 cycles, AC-15, 2 A at 230 V, operating rate 1000000 cycles, DC-15, 2 A at 230 V, operating rate |
| Electrical reliability: | ? = 10exp(-8) at 5 V and 1 mA with confidence level of 90 % conforming to IEC 60947-5-4 |
| Compatibility code: | ZB6 |
| Protective treatment: | TC |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -25...70 °C |
| Electrical shock protection class: | Class II conforming to IEC 61140 |
| IP degree of protection: | IP65 conforming to IEC 60529 |
| Standards: | JIS C 4520EN/IEC 60947-5-1UL 508CSA C22.2 No 14EN/IEC 60947-5-5JIS C 852EN/IEC 60947-1 |
| Product certifications: | GOSTCSAULCCC |
| Vibration resistance: | +/- 3 mm (f= 2...500 Hz) conforming to IEC 60068-2-65 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110775372 |
|---|
