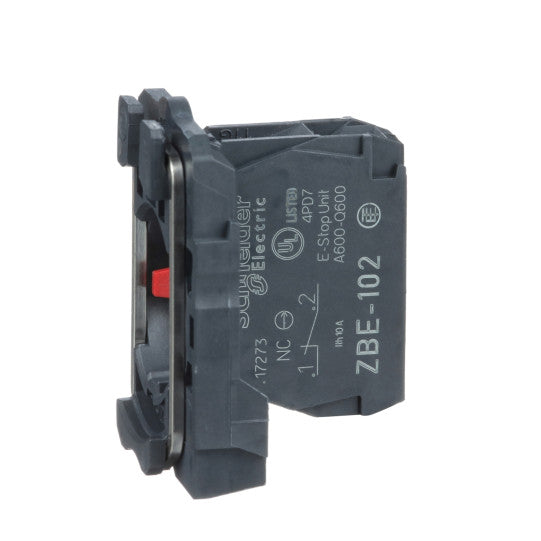

Single contact block with body/fixing collar, plastic, screw clamp terminal, 1 NC - ZB5AZ102
SKU : ZB5AZ102
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Single contact block with body/fixing collar, plastic, screw clamp terminal, 1 NC - ZB5AZ102
DESCRIPTION
| Range of product: | Harmony XB5 |
|---|---|
| Product or component type: | Complete body/contact assembly |
| Device short name: | ZB5 |
| Fixing collar material: | Plastic |
| Sale per indivisible quantity: | 1 |
| Head type: | Standard |
| Contacts type and composition: | 1 NC |
| Contact operation: | Slow-break |
| Contact block type: | Single |
| Connections - terminals: | Screw clamp terminals, Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| CAD overall width: | 30 mm |
|---|---|
| CAD overall height: | 42 mm |
| CAD overall depth: | 32 mm |
| Terminals description ISO n°1: | (11-12)NC |
| Product weight: | 0.021 kg |
| Device composition: | BodyFixing collar |
| Contacts usage: | Standard contacts |
| Positive opening: | With conforming to EN/IEC 60947-5-1 appendix K |
| Operating travel: | 1.5 mm (NC changing electrical state)4.3 mm (total travel) |
| Operating force: | 2 N NC changing electrical state |
| Mechanical durability: | 10000000 cycles |
| Tightening torque: | 0.8...1.2 N.m conforming to EN 60947-1 |
| Shape of screw head: | Cross compatible with Philips no 1 screwdriverCross compatible with pozidriv No 1 screwdriverSlotted compatible with flat Ø 4 mm screwdriverSlotted compatible with flat Ø 5.5 mm screwdriver |
| Contacts material: | Silver alloy (Ag/Ni) |
| Short-circuit protection: | 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 |
| [Ith] conventional free air thermal current: | 10 A conforming to EN/IEC 60947-5-1 |
| [Ui] rated insulation voltage: | 600 V (pollution degree 3) conforming to EN 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to EN 60947-1 |
| [Ie] rated operational current: | 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-16 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-10.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-10.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-11.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1 |
| Electrical durability: | 1000000 cycles, AC-15, 2 A at 230 V, operating rate 1000000 cycles, AC-15, 3 A at 120 V, operating rate 1000000 cycles, AC-15, 4 A at 24 V, operating rate 1000000 cycles, DC-13, 0.2 A at 110 V, operating rate 1000000 cycles, DC-13, 0.5 A at 24 V, operating rate |
| Electrical reliability: | ? ? |
| Device presentation: | Basic sub-assemblies |
| Customizable: | No |
| Customizable: | 0 |
| Compatibility code: | ZB5 |
| Protective treatment: | TH |
|---|---|
| Ambient air temperature for storage: | -40...70 °C |
| Ambient air temperature for operation: | -40...70 °C |
| IP degree of protection: | IP20 conforming to IEC 60529 |
| Standards: | UL 508EN/IEC 60947-5-1JIS C8201-5-1EN/IEC 60947-1CSA C22.2 No 14EN/IEC 60947-5-4JIS C8201-1 |
| Product certifications: | CSAULGLLROS (Lloyds register of shipping)BVDNV |
| Vibration resistance: | 5 gn (f= 2...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-2750 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3389110924411 |
|---|
