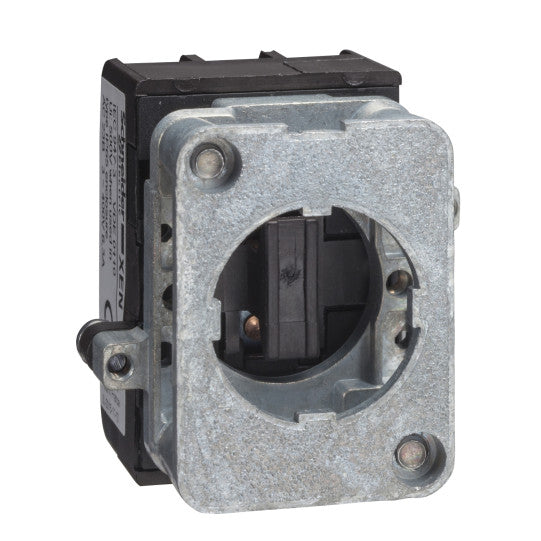

single isolating block XACS - for power circuit - horizontal fixing centres-40mm - XACS399
SKU : XACS399
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
single isolating block XACS - for power circuit - horizontal fixing centres-40mm - XACS399
DESCRIPTION
| Range of product: | Harmony XAC |
|---|---|
| Product or component type: | Isolating block |
| Component name: | XACS |
| Electrical circuit type: | Power circuit |
| Contact block application: | Emergency stop push-button |
| Contact block type: | Single |
| Product compatibility: | XACB |
| Contacts type and composition: | 3 NC |
| Mounting of block: | Front mounting |
| Contact operation: | Snap action |
| Connections - terminals: | Screw clamp terminals, 1 x 2.5 mm² with or without cable endScrew clamp terminals, 2 x 1.5 mm² with or without cable end |
|---|---|
| Horizontal fixing centres: | 40 mm |
| Mechanical durability: | 1000000 cycles |
| Contact code designation: | A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix AQ300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| [Ui] rated insulation voltage: | 400 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-1 |
| Rated operational power in W: | 3000 W AC-23B at 400 V |
| Product weight: | 0.1 kg |
| Standards: | EN 60947-3IEC 60947-3CSA C22.2 No 14 |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 15 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 100 gn conforming to IEC 60068-2-27 |
| Electrical shock protection class: | Class II conforming to IEC 61140 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3389110647457 |
|---|
