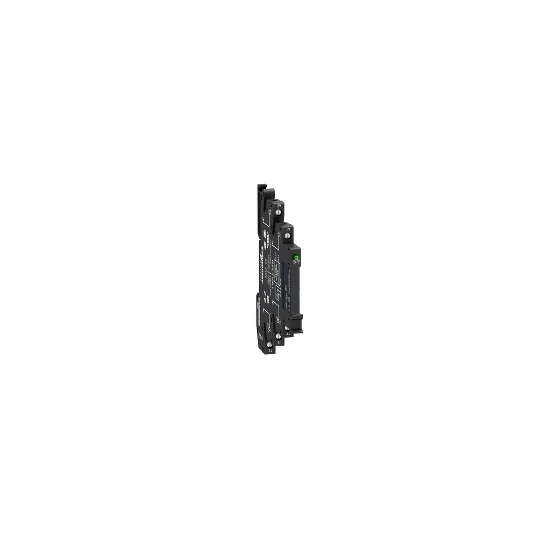

Slim interface relay pre-assembled, 6 A, 1 CO, LED, protection module, spring terminal, 48 V AC - RSL1PVEU
DESCRIPTION
| Range of product: | Harmony Electromechanical Relays |
|---|---|
| Series name: | Interface relay |
| Product or component type: | Pre-assembled plug-in relay with socket |
| Device short name: | RSL |
| Contacts type and composition: | 1 C/O |
| Contact operation: | Standard |
| [Uc] control circuit voltage: | 48 V DC |
| [Ithe] conventional enclosed thermal current: | 6 A at -40...55 °C |
| Status LED: | With |
| Shape of pin: | Flat (PCB type) |
| [Uc] control circuit voltage: | 48 V |
| [In] rated current: | 6 A |
| Connections - terminals: | Screw connectors |
| Fixing mode: | Plastic compression spring |
|---|---|
| Average resistance: | 10600 Ohm network: DC at 23 °C +/- 10 % |
| [Ui] rated insulation voltage: | 250 V conforming to EN/IEC277 V conforming to cUL |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC |
| Contacts material: | Silver alloy (AgSnO2) |
| [Ie] rated operational current: | 6 A 1 C/O (AC-1/DC-1) conforming to IEC/UL |
| Minimum switching current: | 100 mA |
| Maximum switching voltage: | 277 V |
| Minimum switching voltage: | 12 V |
| Maximum switching capacity: | 1500 VA150 W |
| Minimum switching capacity: | 120 mW |
| Operating rate: | |
| Mechanical durability: | 10000000 cycles |
| Electrical durability: | 60000 cycles for resistive load, 6 A at 250 V, AC-1 |
| Operating time: | 5 ms reset12 ms |
| Marking: | CE |
| Protection category: | RT III |
| Test levels: | Level A group mounting |
| Operating position: | Any position |
| Height: | 78.6 mm |
| Width: | 6.2 mm |
| Depth: | 95 mm |
| Terminals description ISO n°1: | (11-12-14)OC(A1-A2)CO |
| Sale per indivisible quantity: | 10 |
| Net weight: | 0.029 kg |
| Load current: | 6 A at 250 V AC 0.5 mm mounting distance |
| Average coil consumption: | 0.17 W, DC |
| Drop-out voltage threshold: | >= 0.05 Uc |
| Contact terminal arrangement: | Separate |
| Connections - terminals: | Screw connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable endScrew connectors, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable end |
| Tightening torque: | |
| Safety reliability data: | B10d = 60000 |
| Control type: | Without push-button |
| Mounting support: | 35 mm symmetrical DIN rail |
| Device presentation: | Complete product |
| Compatibility code: | RSL |
| Input voltage: | 48 V AC/DC (input voltage limit: 43.2...57.6 V) |
|---|---|
| Dielectric strength: | 1000 V AC between contacts4000 V AC between coil and contact |
| Standards: | CSA C22.2 No 14UL 508EN/IEC 61810-1 |
| Product certifications: | GOSTCSAUL |
| Ambient air temperature for storage: | -40...85 °C |
| Vibration resistance: | 10 gn, amplitude = +/- 1 mm (f = 10...150 Hz)10 cycles not operating conforming to EN/IEC 60068-2-65 gn, amplitude = +/- 1 mm (f = 10...150 Hz)10 cycles in operation conforming to EN/IEC 60068-2-6 |
| IP degree of protection: | IP40 conforming to EN/IEC 60529 |
| Shock resistance: | 10 gn (duration = 11 ms) for in operation conforming to EN/IEC 60068-2-275 gn (duration = 11 ms) for not operating conforming to EN/IEC 60068-2-27 |
| Ambient air temperature for operation: | -40...55 °C |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope)Toxic heavy metal free |
| Code EAN: | 3606480077845 |
|---|
