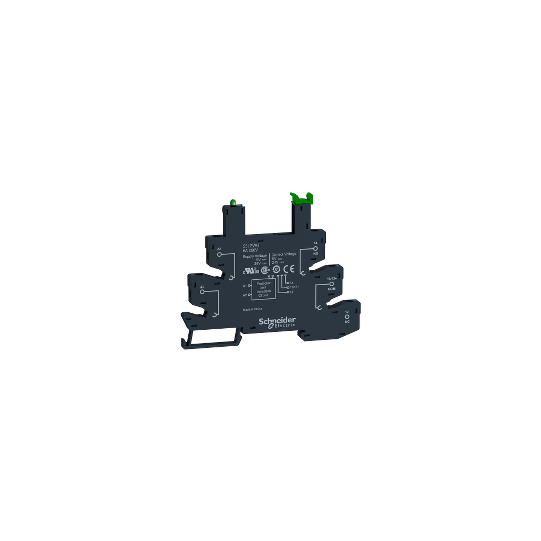

Socket, 6 A, relay type SSL, screw connector, 5/24 V DC - SSLZVA1
SKU : SSLZVA1
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Socket, 6 A, relay type SSL, screw connector, 5/24 V DC - SSLZVA1
DESCRIPTION
| Range of product: | Harmony Solid State Relays |
|---|---|
| Device short name: | SSLZ |
| Product or component type: | Socket for SSL1 |
| Product compatibility: | Solid state relay SSL with NO contact at 24 V DCSolid state relay SSL with NO contact at 5 V DC |
| [In] rated current: | 6 A |
| [Ith] conventional free air thermal current: | 6 A |
| [Uc] control circuit voltage: | 5 V24 V |
| Switching voltage: | 5 V DC24 V DC |
| [Ue] rated operational voltage: |
| Shape of pin: | Flat |
|---|---|
| Contact terminal arrangement: | Separate |
| Connections - terminals: | Screw connectors |
| Connections - terminals: | Screw clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) solid without cable endScrew clamp terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end |
| Compatibility code: | SSLZ |
| Tightening torque: | |
| Fixing mode: | Clip-on (35 mm DIN rail) |
| Sale per indivisible quantity: | 10 |
| Local signalling: | LED (green) for input status |
| Group of product: | SSL_NO_SEP_FLAT_SCREW_5-24 |
| Width: | 6.2 mm |
| Height: | 101 mm |
| Depth: | 78.6 mm |
| Net weight: | 0.0285 kg |
| Standards: | IEC 61984 |
|---|---|
| Product certifications: | CSA C22-2 No 14UL 508 |
| Marking: | CE |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | -40...70 °C |
| IP degree of protection: | IP20 |
| Flame retardance: | V0 conforming to UL 94 |
| Total lifecycle Carbon footprint: | 0.4 kg CO2 eq.Carbon footprint of the manufacturing phase [A1 to A3] |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480580123 |
|---|
