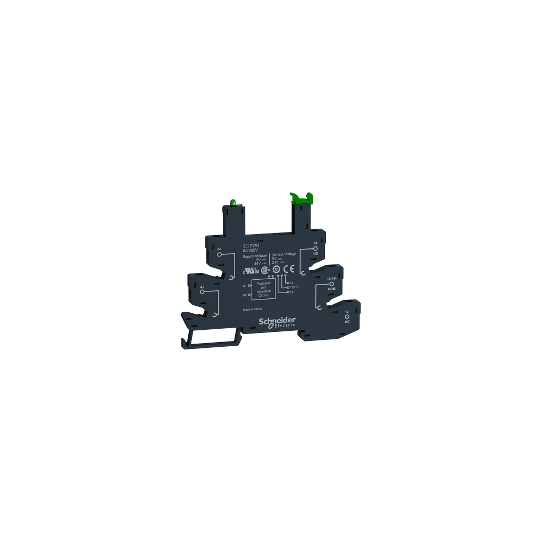

Socket, 6 A, relay type SSL, spring terminals, 5/24 V DC - SSLZRA1
DESCRIPTION
| Range of product: | Harmony Solid State Relays |
|---|---|
| Product or component type: | Socket for SSL1 |
| Device short name: | SSLZ |
| Sale per indivisible quantity: | 10 |
| [Uc] control circuit voltage: | 5 V24 V |
| [In] rated current: | 6 A |
| Connections - terminals: | Spring terminals |
| Contact terminal arrangement: | Separate |
|---|---|
| Product compatibility: | Solid state relay SSL with NO contact at 24 V DCSolid state relay SSL with NO contact at 5 V DC |
| Shape of pin: | Flat |
| [Ith] conventional free air thermal current: | 6 A |
| [Ith] conventional free air thermal current: | 6 A |
| [Ue] rated operational voltage: | |
| Connections - terminals: | Spring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) solid without cable endSpring terminals, 1 x 0.2...1 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end |
| Clamping force: | 10...40 N |
| Fixing mode: | Clip-on (35 mm DIN rail) |
| Switching voltage: | 5 V DC24 V DC |
| Local signalling: | LED (green) for input status |
| Width: | 6.2 mm |
| Height: | 101 mm |
| Depth: | 78.6 mm |
| Product weight: | 0.0285 kg |
| Group of product: | SSL_NO_SEP_FLAT_SPRING_5-24 |
| Compatibility code: | SSLZ |
| Flame retardance: | V0 conforming to UL 94 |
|---|---|
| Standards: | IEC 61984 |
| Product certifications: | UL 508CSA C22-2 No 14 |
| Marking: | CE |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | -40...70 °C |
| IP degree of protection: | IP20 |
| Dielectric strength: | 2500 V |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480580161 |
|---|
