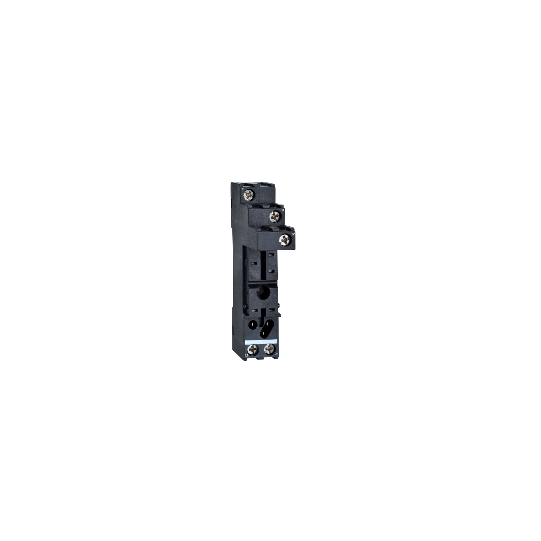

Socket, separate contact, 12 A, relay type RSB, screw connector, 250 V AC - RSZE1S35M
SKU : RSZE1S35M
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Socket, separate contact, 12 A, relay type RSB, screw connector, 250 V AC - RSZE1S35M
DESCRIPTION
| Range of product: | Harmony Electromechanical Relays |
|---|---|
| Product or component type: | Socket |
| Contact terminal arrangement: | Separate |
| Product compatibility: | Plug-in relay RSB with 1 C/O contact |
| Shape of pin: | Flat |
| Device short name: | RSZ |
| Sale per indivisible quantity: | 10 |
| Contacts type and composition: | 1 C/O |
| [In] rated current: | 12 A |
| Connections - terminals: | Screw connectors |
| [Ith] conventional free air thermal current: | 12 A |
|---|---|
| [Ue] rated operational voltage: | |
| [Uimp] rated impulse withstand voltage: | 3.6 kV |
| Tightening torque: | |
| Fixing mode: | By screw (panel)Clip-on (35 mm symmetrical DIN rail) |
| Marking: | CE |
| Width: | 15.5 mm |
| Group of product: | RSB_1_C/O_SC_CONS_SEP_FLAT_12 |
| Compatibility code: | RSZ |
| Overvoltage category: | III |
|---|---|
| Pollution degree: | 3 |
| Connections - terminals: | Screw connectors, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable endScrew connectors, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable endScrew connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable endScrew connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Standards: | IEC 61984 |
| Product certifications: | ULCSA |
| Ambient air temperature for storage: | -40...85 °C |
| Ambient air temperature for operation: | -25...85 °C |
| IP degree of protection: | IP20 conforming to EN/IEC 60529 |
| Dielectric strength: | 2500 V |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3389110260120 |
|---|
