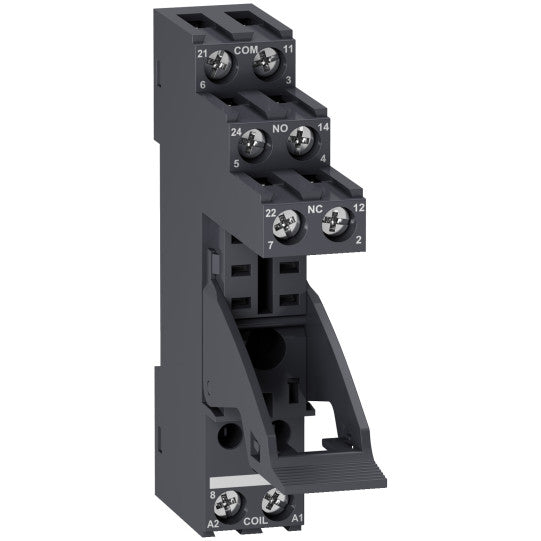

Socket, separate contact, 5 A, relay type RXG2, screw connector, 250 V AC - RGZE1S48M
DESCRIPTION
| Range of product: | Harmony Electromechanical Relays |
|---|---|
| Product or component type: | Socket |
| Contact terminal arrangement: | Separate |
| Contacts type and composition: | 2 C/O |
| Connections - terminals: | Screw connectors |
| Product compatibility: | Plug-in relay RXG with 2 C/O contact |
|---|---|
| [Ui] rated insulation voltage: | 250 V |
| [Uimp] rated impulse withstand voltage: | 6 kV between coil and contact with reinforced insulation4 kV between contacts with basic insulation4 kV between poles with basic insulation4 kV between terminals and DIN rail with basic insulation |
| [In] rated current: | 5 A |
| [Ue] rated operational voltage: | 250 V conforming to IEC300 V conforming to UL |
| Dielectric strength: | 5 kV between coil and contact with reinforced insulation2.5 kV between contacts with basic insulation3 kV between poles with basic insulation3 kV between terminals and DIN rail with basic insulation |
| Connections - terminals: | Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable endScrew terminals, 2 x 0.25...2 x 1 mm² (AWG 22...AWG 17) flexible with cable endScrew terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable endScrew terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end |
| Screw type: | M3 |
| Ambient air temperature for storage: | -40...85 °C |
|---|---|
| Ambient air temperature for operation: | -40...70 °C |
| Relative humidity: | 10...85 % |
| Standards: | CSA C22.2 No 14IEC 61984UL 508 |
| Product certifications: | EACCECSAULDNV-GL |
| IP degree of protection: | IP20 |
| Overvoltage category: | III |
| Pollution degree: | 3 |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480689444 |
|---|
