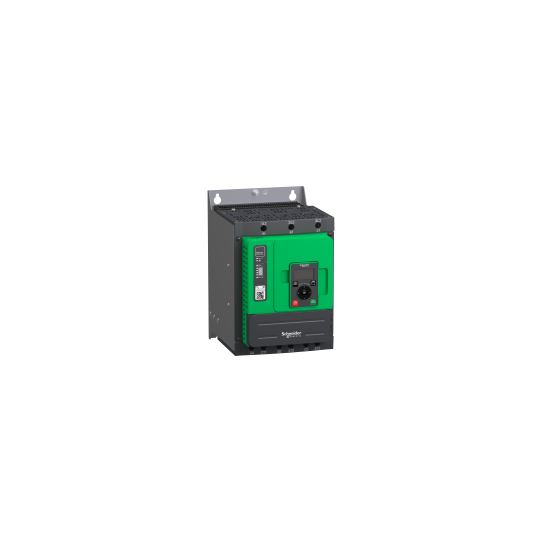

soft starter, Altistart 480, 790A, 208 to 690V AC, control supply 110 to 230V AC - ATS480D88Y
DESCRIPTION
| Range of product: | Altivar Soft Starter ATS480 |
|---|---|
| Product or component type: | Soft starter |
| Product destination: | Asynchronous motors |
| Product specific application: | Process and infrastructures |
| Device short name: | ATS480 |
| Network number of phases: | 3 phases |
| Utilisation category: | AC-3AAC-53A |
| [Us] rated supply voltage: | 208...690 V - 15...10 % |
| Supply frequency: | 50...60 Hz - 20...20 % |
| [Ie] rated operational current: | Normal duty: 88.0 A (at |
| Maximum permanent current: | 75.0 A at 40 °C for heavy duty |
| Torque control: | True |
| IP degree of protection: | IP20 |
| Motor power kW: | 22.0 kW at 230 V in the motor supply line normal duty18.5 kW at 230 V in the motor supply line heavy duty45.0 kW at 400 V in the motor supply line normal duty37.0 kW at 400 V in the motor supply line heavy duty45.0 kW at 440 V in the motor supply line normal duty37.0 kW at 440 V in the motor supply line heavy duty55.0 kW at 500 V in the motor supply line normal duty45.0 kW at 500 V in the motor supply line heavy duty55.0 kW at 525 V in the motor supply line normal duty45.0 kW at 525 V in the motor supply line heavy duty75.0 kW at 660 V in the motor supply line normal duty55.0 kW at 660 V in the motor supply line heavy duty75.0 kW at 690 V in the motor supply line normal duty55.0 kW at 690 V in the motor supply line heavy duty45.0 kW at 230 V to the motor delta terminals normal duty37.0 kW at 230 V to the motor delta terminals heavy duty75.0 kW at 400 V to the motor delta terminals normal duty55.0 kW at 400 V to the motor delta terminals heavy duty |
| Motor power hp: | 25.0 hp at 208 V normal duty20.0 hp at 208 V heavy duty30.0 hp at 230 V normal duty25.0 hp at 230 V heavy duty60.0 hp at 460 V normal duty50.0 hp at 460 V heavy duty75.0 hp at 575 V normal duty60.0 hp at 575 V heavy duty |
| Option card: | Communication module for Profibus DP V1Communication module for PROFINETCommunication module for Modbus TCP/EtherNet/IPCommunication module for CANopen daisy chainCommunication module for CANopen Sub-DCommunication module for CANopen open style |
| Device connection: | In the motor supply lineTo the motor delta terminals |
|---|---|
| [Uc] control circuit voltage: | 110...230 V AC 50/60 Hz - 15...10 % |
| Apparent power: | 0.09 kVA |
| Integrated motor overload protection: | True |
| Accuracy class: | Class 10E |
| Protection type: | Phase failure: lineIntegrated thermal protection: motorThermal protection: starterCurrent overload: motorUnderload: motorExcessive starting time, locked rotor: motorMotor phase loss: motorLine supply phase loss: lineLine supply phase loss: motorThermal protection: motor |
| Output current drift: | 150...700 % |
| Rated current pwr loss specification: | 88.0 A |
| Power loss static current independent: | 25.0 W |
| Power loss per device current dependent: | 270.0 W |
| Standards: | EN/IEC 60947-4-2UL 60947-4-2IEC 60664-1 |
| Product certifications: | CEcULusCCCUKCARCMEACDNVABSBVCCS |
| Marking: | CECCCUKCAEACRCMCULus |
| Discrete input number: | 4 |
| Discrete input type: | (STOP) logic inputs, 3500 Ohm (RUN) logic inputs, 3500 Ohm (DI3) programmable as logic input, 3500 Ohm (DI4) programmable as logic input, 3500 Ohm |
| Input compatibility: | STOP: discrete input level 1 PLC conforming to EN/IEC 61131-2RUN: discrete input level 1 PLC conforming to EN/IEC 61131-2DI3: discrete input level 1 PLC conforming to EN/IEC 61131-2DI4: discrete input level 1 PLC conforming to EN/IEC 61131-2 |
| Discrete input logic: | Programmable digital input at State 0: |
| Relay output number: | 3 |
| Relay output type: | Relay outputs R1A 1 NORelay outputs R1B 1 NORelay outputs RIC NO/NC programmable |
| Minimum switching current: | 10 mA at 24 V DC for relay outputs |
| Maximum switching current: | Relay outputs 2 A at 250 V ACRelay outputs 2 A at 30 V DCRelay outputs |
| Discrete output number: | 2 |
| Discrete output type: | (DQ1) programmable digital output (DQ2) programmable digital output |
| Output compatibility: | Open collector level 1 PLC conforming to IEC 65A-68 |
| Analogue input number: | 1 |
| Analogue input type: | AI1/PTC PTC/Pt 100 temperature probePTC2 PTC/Pt 100 temperature probePTC3 PTC/Pt 100 temperature probe |
| Analogue output number: | 1 |
| Analogue output type: | Current output AQ1: 0...20 mA or 0...10 V, impedance |
| Communication port protocol: | Modbus serial |
| Connector type: | 1 RJ45 |
| Communication data link: | Serial |
| Physical interface: | 2-wire RS 485 |
| Transmission rate: | 1200...256000 bit/s |
| Transmission frame: | RTU |
| Data format: | 8 bits, configurable odd, even or no parity |
| Type of polarization: | No impedance for Modbus serial |
| Number of addresses: | 0...227 for Modbus serial |
| Method of access: | Slave Modbus serial |
| Function available: | External bypass controlPre-heatingSmoke extractionMulti-motor cascadeSecond motor setUser managementPorts and services hardeningSecurity event loggingCybersecure firmware updateSingle direction |
| Display screen available: | True |
| Operating position: | Vertical +/- 10 degree |
| Height: | 290.0 mm |
| Width: | 190.0 mm |
| Depth: | 247.0 mm |
| Net weight: | 8.3 kg |
| Network frequency: | 50/60 Hz |
| Noise level: | 58.0 dB |
| Volume of cooling air: | 86.0 m3/h |
| Suitable for mounting onto standard rails: | False |
| With safety function Safely Limited Speed (SLS): | False |
| With safety function Safe Direction (SDI): | False |
| With safety function Safely Limited Position (SLP): | False |
| With safety function Safe brake management (SBC/SBT): | False |
| With safety function Safe Operating Stop (SOS): | False |
| With safety function Safe Position (SP): | False |
| With safety function Safe programmable logic: | False |
| With safety function Safe Speed Monitor (SSM): | False |
| With safety function Safe Stop 1 (SS1): | False |
| With sft fct Safe Stop 2 (SS2): | False |
| With safety function Safe torque off (STO): | False |
| Electromagnetic compatibility: | Conducted and radiated emissions level A conforming to IEC 60947-4-2Conducted and radiated emissions with bypass level B conforming to IEC 60947-4-2Damped oscillating waves level 3 conforming to IEC 61000-4-12Electrostatic discharge level 3 conforming to IEC 61000-4-11Immunity to electrical transients level 4 conforming to IEC 61000-4-4Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
|---|---|
| Pollution degree: | Level 3 |
| [Uimp] rated impulse withstand voltage: | 6 kV |
| [Ui] rated insulation voltage: | 690 V |
| Environmental class (during operation): | Class 3C3 according to IEC 60721-3-3Class 3S2 according to IEC 60721-3-3 |
| Relative humidity: | 0...95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for operation: | 40...60 °C (with current derating of 2 % per °C)-15...40 °C (without derating) |
| Ambient air temperature for storage: | -25...70 °C |
| Operating altitude: | > 1000...4000 m with current derating 1 % per 100 m |
| Maximum deflection under vibratory load (during operation): | 1.5 mm at 2...13 Hz |
| Maximum deflection under vibratory load (during storage): | 1.75 mm at 2...9 Hz |
| Maximum deflection under vibratory load (during transport): | 1.75 mm at 2...9 Hz |
| Maximum acceleration under vibrational stress (during operation): | 10 m/s² at 13...200 Hz |
| Maximum acceleration under vibratory load (during storage): | 15 m/s² at 200...500 Hz10 m/s² at 9...200 Hz |
| Maximum acceleration under vibratory load (during transport): | 15 m/s² at 200...500 Hz10 m/s² at 9...200 Hz |
| Maximum acceleration under shock impact (during operation): | 150 m/s² at 11 ms |
| Maximum acceleration under shock load (during storage): | 100 m/s² at 11 ms |
| Maximum acceleration under shock load (during transport): | 100 m/s² at 11 ms |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606481089069 |
|---|
