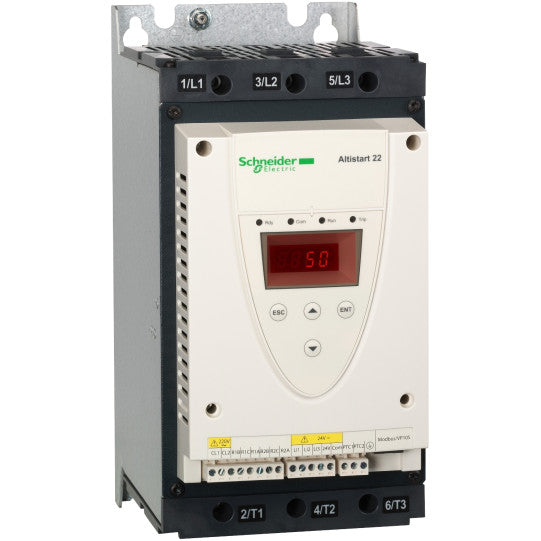

soft starter-ATS22-control 220V-power 230V(18.5kW)/400...440V(37kW) - ATS22D75Q
SKU : ATS22D75Q
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
soft starter-ATS22-control 220V-power 230V(18.5kW)/400...440V(37kW) - ATS22D75Q
DESCRIPTION
| Range of product: | Altistart 22 |
|---|---|
| Product or component type: | Soft starter |
| Product destination: | Asynchronous motors |
| Product specific application: | Pumps and fans |
| Component name: | ATS22 |
| Network number of phases: | 3 phases |
| [Us] rated supply voltage: | 230...440 V - 15...10 % |
| Motor power kW: | 37 kW 400 V37 kW 440 V18.5 kW 230 V |
| Factory setting current: | 69 A |
| Power dissipation in W: | 63 W for standard applications |
| Utilisation category: | AC-53A |
| Type of start: | Start with torque control (current limited to 3.5 In) |
| IcL starter rating: | 75 A for connection in the motor supply line for standard applications |
| IP degree of protection: | IP20 |
| Assembly style: | With heat sink |
|---|---|
| Function available: | Internal bypass |
| Supply voltage limits: | 195...484 V |
| Supply frequency: | 50...60 Hz - 10...10 % |
| Network frequency: | 45...66 Hz |
| Device connection: | In the motor supply lineTo the motor delta terminals |
| [Uc] control circuit voltage: | 230 V - 15...10 % 50/60 Hz |
| Control circuit consumption: | 20 W |
| Discrete output number: | 2 |
| Discrete output type: | Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/ORelay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O |
| Minimum switching current: | 100 mA at 12 V DC (relay outputs) |
| Maximum switching current: | 5 A 250 V AC resistive 1 relay outputs5 A 30 V DC resistive 1 relay outputs2 A 250 V AC inductive 0.4 20 ms relay outputs2 A 30 V DC inductive 7 ms relay outputs |
| Discrete input number: | 3 |
| Discrete input type: | (LI1, LI2, LI3) logic, 5 mA 4.3 kOhm |
| Discrete input voltage: | 24 V |
| Discrete input logic: | Positive logic LI1, LI2, LI3 at State 0: 11 V, >= 5 mA |
| Output current: | 0.4...1 Icl adjustable |
| PTC probe input: | 750 Ohm |
| Communication port protocol: | Modbus |
| Connector type: | 1 RJ45 |
| Communication data link: | Serial |
| Physical interface: | RS485 multidrop |
| Transmission rate: | 4800, 9600 or 19200 bps |
| Installed device: | 31 |
| Protection type: | Phase failure: lineThermal protection: motorThermal protection: starter |
| Marking: | CE |
| Type of cooling: | Forced convection |
| Operating position: | Vertical +/- 10 degree |
| Height: | 295 mm |
| Width: | 145 mm |
| Depth: | 207 mm |
| Product weight: | 12 kg |
| Power range: | 15...25 kW at 200...240 V 3 phases30...50 kW at 380...440 V 3 phases |
| Motor starter type: | Soft starter |
| Electromagnetic compatibility: | Conducted and radiated emissions level A conforming to IEC 60947-4-2Damped oscillating waves level 3 conforming to IEC 61000-4-12Electrostatic discharge level 3 conforming to IEC 61000-4-2Immunity to electrical transients level 4 conforming to IEC 61000-4-4Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
|---|---|
| Standards: | EN/IEC 60947-4-2 |
| Product certifications: | CSAULGOSTCCCC-Tick |
| Vibration resistance: | 1 gn (f= 13...200 Hz) conforming to EN/IEC 60068-2-61.5 mm (f= 2...13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance: | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Noise level: | 45 dB |
| Pollution degree: | Level 2 conforming to IEC 60664-1 |
| Relative humidity: | 0...95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for operation: | -10...40 °C (without derating)40...60 °C (with current derating 2.2 % per °C) |
| Ambient air temperature for storage: | -25...70 °C |
| Operating altitude: | > 1000... |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480167225 |
|---|
