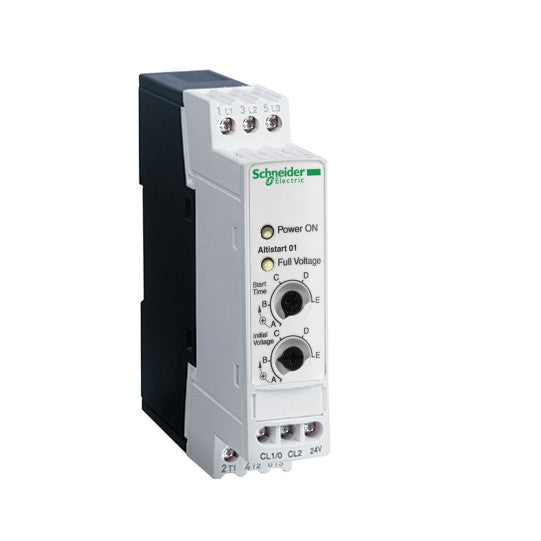

soft starter for asynchronous motor - ATS01 - 6 A - 110..480V - 0.75..3 KW - ATS01N106FT
SKU : ATS01N106FT
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
soft starter for asynchronous motor - ATS01 - 6 A - 110..480V - 0.75..3 KW - ATS01N106FT
DESCRIPTION
| Range of product: | Altistart 01 |
|---|---|
| Product or component type: | Soft starter |
| Product destination: | Asynchronous motors |
| Product specific application: | Simple machine |
| Device short name: | ATS01 |
| Network number of phases: | 1 phase |
| [Us] rated supply voltage: | 110...480 V - 10...10 % |
| Motor power kW: | 3 kW, 3 phases at 400 V0.75 kW, 3 phases at 230 V1.1 kW, 3 phases at 230 V2.2 kW, 3 phases at 400 V0.75 kW, 1 phase at 230 V |
| Motor power hp: | 1 hp, 3 phases at 230 V2 hp, 3 phases at 460 V3 hp, 3 phases at 460 V0.5 hp, 3 phases at 210 V1.5 hp, 3 phases at 230 V |
| IcL starter rating: | 6 A |
| Utilisation category: | AC-53B conforming to EN/IEC 60947-4-2 |
| Current consumption: | 30 A at nominal load |
| Type of start: | Start with voltage ramp |
| Power dissipation in W: | 1 W at full load and at end of starting31 W in transient state |
| Assembly style: | With heat sink |
|---|---|
| Function available: | Integrated bypass |
| Supply voltage limits: | 99...528 V |
| Supply frequency: | 50...60 Hz - 5...5 % |
| Network frequency: | 47.5...63 Hz |
| Output voltage: | |
| [Uc] control circuit voltage: | 110 V AC +/- 10 % at 30 mA24 V AC/DC +/- 10 % at 25 mA240 V AC +/- 10 % at 65 mA |
| Starting time: | 1 s / 1005 s / 20Adjustable from 1 to 5 s |
| Starting torque: | 30...80 % of starting torque of motor connected directly on the line supply |
| Discrete output current: | 2 A DC-133 A AC-15 |
| Tightening torque: | 0.8 N.m |
| Electrical connection: | Cage type connector - rigid 1 2.5 mm² AWG 14 control circuitCage type connector - rigid 1 2.5 mm² AWG 14 power circuitCage type connector - rigid 2 1 mm² AWG 17 control circuitCage type connector - rigid 2 1 mm² AWG 17 power circuitCage type connector - flexible with cable end 1 2.5 mm² AWG 14 control circuitCage type connector - flexible with cable end 1 2.5 mm² AWG 14 power circuitCage type connector - flexible without cable end 1 2.5 mm² AWG 14 control circuitCage type connector - flexible without cable end 1 2.5 mm² AWG 14 power circuitCage type connector - flexible with cable end 2 0.75 mm² AWG 18 control circuitCage type connector - flexible with cable end 2 0.75 mm² AWG 18 power circuitCage type connector - flexible without cable end 2 1 mm² AWG 17 control circuitCage type connector - flexible without cable end 2 1 mm² AWG 17 power circuit |
| Marking: | CE |
| Operating position: | Vertical +/- 10 degree |
| Height: | 100 mm |
| Width: | 23 mm |
| Depth: | 100 mm |
| Product weight: | 0.16 kg |
| Compatibility code: | ATS01N1 |
| Power range: | 0.55...1 kW at 200...240 V 3 phases1.1...2 kW at 380...440 V 3 phases0.55...1 kW at 200...240 V 1 phase1.1...2 kW at 200...240 V 3 phases2.2...3 kW at 380...440 V 3 phases |
| Motor starter type: | Soft starter |
| Electromagnetic compatibility: | Conducted and radiated emissions level B conforming to CISPR 11Conducted and radiated emissions level B conforming to IEC 60947-4-2Damped oscillating waves level 3 conforming to IEC 61000-4-12Electrostatic discharge level 3 conforming to IEC 61000-4-2EMC immunity conforming to EN 50082-1EMC immunity conforming to EN 50082-2Harmonics conforming to IEC 1000-3-2Harmonics conforming to IEC 1000-3-4Immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6Immunity to electrical transients level 4 conforming to IEC 61000-4-4Immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3Micro-cuts and voltage fluctuation conforming to IEC 61000-4-11Voltage/current impulse level 3 conforming to IEC 61000-4-5 |
|---|---|
| Standards: | EN/IEC 60947-4-2 |
| Product certifications: | C-TickCCCCSAB44.1-96/ASME A17.5 for starter wired to the motor delta terminalULGOST |
| IP degree of protection: | IP20 |
| Pollution degree: | 2 conforming to EN/IEC 60947-4-2 |
| Vibration resistance: | 1 gn (f= 13...150 Hz) conforming to EN/IEC 60068-2-61.5 mm peak to peak (f= 3...13 Hz) conforming to EN/IEC 60068-2-6 |
| Shock resistance: | 15 gn for 11 ms conforming to EN/IEC 60068-2-27 |
| Relative humidity: | 5...95 % without condensation or dripping water conforming to EN/IEC 60068-2-3 |
| Ambient air temperature for operation: | -10...40 °C (without derating)40...50 °C (with current derating of 2 % per °C) |
| Ambient air temperature for storage: | -25...70 °C conforming to EN/IEC 60947-4-2 |
| Operating altitude: | > 1000 m with current derating of 2.2 % per additional 100 m |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3389110667141 |
|---|
