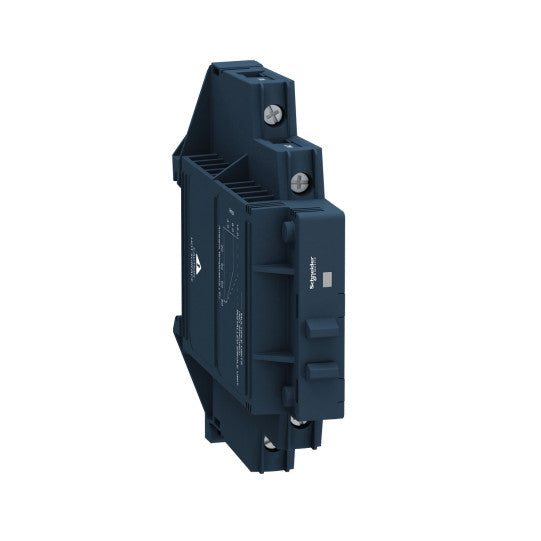

Solid state modular relay, 12 A, random swtching, input 18...36 V AC, output 24...280 V AC - SSM1A112B7R
SKU : SSM1A112B7R
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Solid state modular relay, 12 A, random swtching, input 18...36 V AC, output 24...280 V AC - SSM1A112B7R
DESCRIPTION
| Range of product: | Harmony Solid State Relays |
|---|---|
| Product or component type: | Solid state relay up to 20 A |
| Device short name: | SSM |
| Number of channels: | 1 |
| Network number of phases: | 1 phase |
| [Uc] control circuit voltage: | 18...36 V |
| Connections - terminals: | Screw connectors |
| Output switching mode: | Random voltage switching |
| Mounting support: | Symmetrical DIN rail |
|---|---|
| [In] rated current: | 12 A |
| Output voltage: | 24...280 V AC |
| [Uc] control circuit voltage: | 18...36 V AC |
| Tightening torque: | 0.5...0.8 N.m for input0.5...0.8 N.m for output |
| Connections - terminals: | Screw terminals: 1 x 0.3...1 x 1.5 mm², (AWG 22...AWG 16) for inputScrew terminals: 1 x 0.3...1 x 2.5 mm², (AWG 22...AWG 14) for output |
| Capacitance unbalance: | 10 pF for input/output |
| Insulation resistance: | 1000 MOhm at 500 V DC |
| Local signalling: | LED (green) for input status |
| Minimum switching voltage: | 18 V AC turn-on |
| Maximum switching voltage: | 4 V AC turn-off |
| Input current limits: | 3.5...8.5 mA |
| Solid state output type: | SCR outputRandom voltage switching |
| Load current: | 0.15...12 A |
| Absolute maximum voltage: | 600 V |
| Surge current: | 715 A for 16.6 ms750 A for 20 ms |
| Maximum voltage drop: | |
| Motor power hp: | 0.33 hp 40 °C 240 V AC |
| Maximum I²t for fusing: | 2560 A².s for 10 ms at 50 Hz2330 A².s for 8.33 ms at 60 Hz |
| Maximum leakage current: | 0.1 mA off-state |
| DV/dt: | 500 V/µs off-state at maximum voltage |
| Response time: | 30 ms (turn-off)20 ms (turn-on) |
| Cos phi: | 0.5 (with maximum load) |
| Overvoltage category: | III |
| Width: | 18 mm |
| Height: | 90.3 mm |
| Depth: | 83.7 mm |
| Product weight: | 0.09 kg |
| Device presentation: | Complete product |
| Flame retardance: | V0 conforming to UL 94 |
|---|---|
| Dielectric strength: | 4 kV AC for input/output4 kV AC for input or output to case |
| Pollution degree: | 2 |
| Standards: | IEC 61000IEC 60950-1IEC 62314 |
| Product certifications: | ULCSA |
| Marking: | CE |
| IP degree of protection: | IP20 |
| Ambient air temperature for operation: | -30...80 °C |
| Ambient air temperature for storage: | -30...100 °C |
| Sustainable offer status: | Green Premium productREACh Regulation |
| Code EAN: | 3606480579592 |
|---|
