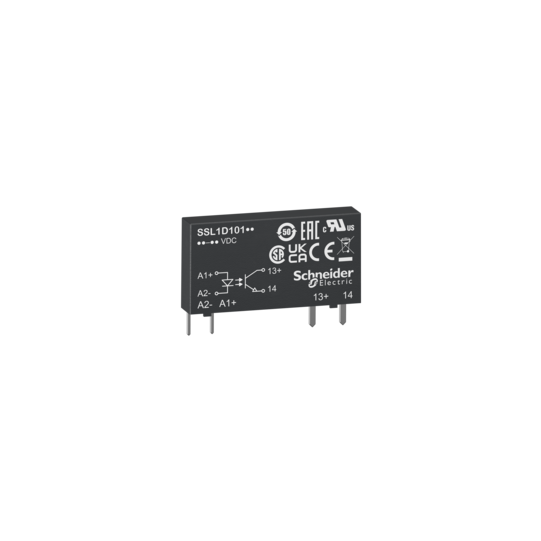

Solid state relay, 0.1 A, DC switching, input 16…30 V DC, output 1…48 V DC - SSL1D101BD
DESCRIPTION
| Range of product: | Harmony Solid State Relays |
|---|---|
| Device short name: | SSL |
| Network number of phases: | 1 phase |
| [Uc] control circuit voltage: | 16...30 V |
| Output switching mode: | DC switching |
| [Ui] rated insulation voltage: | 48 V |
| Insulation resistance: | > 100 MOhm at 500 V DC |
| Electromagnetic compatibility: | Electrostatic discharge - test level: 4 kV criteria B (contact discharge) conforming to IEC 61000-4-2Electrostatic discharge - test level: 8 kV criteria B (air discharge) conforming to IEC 61000-4-2Conducted RF disturbances - test level: 10 V criteria A (0.15...80 MHz) conforming to IEC 61000-4-6Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m criteria A (80 MHz to 1 GHz) conforming to IEC 61000-4-3Radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m criteria A (1.4...6 GHz) conforming to IEC 61000-4-3Electrical fast transient/burst immunity test - test level: 2 kV criteria B (5 kHz) conforming to IEC 61000-4-4Electrical fast transient/burst immunity test - test level: 1 kV criteria B (5 kHz) conforming to IEC 61000-4-4Surge immunity test - test level: 0.5 kV criteria B (line to line) conforming to IEC 61000-4-5Surge immunity test - test level: 1 kV criteria B (line to earth) conforming to IEC 61000-4-5Radiated emission - test level: 30...1000 Mhz conforming to IEC 60947-1Conducted emission - test level: 0.15...30 Mhz conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 5.3 kV for input to case conforming to IEC 623145.3 kV for input/output circuit conforming to IEC 623145.3 kV for input/output circuit conforming to UL 5085.3 kV output to case5.3 kV output to case conforming to IEC 623145.3 kV for input to case conforming to UL 5085.3 kV output to case conforming to UL 508 |
| Mounting support: | Socket |
|---|---|
| [In] rated current: | 0.1 A |
| Output voltage: | 1...48 V DC |
| [Uc] control circuit voltage: | 16...30 V DC |
| Capacitance unbalance: | 2.5 pF input/output |
| Minimum switching voltage: | 16 V DC turn-on |
| Maximum switching voltage: | 9 V DC turn-off |
| Input current: | 5 mA |
| Input impedance: | 4500 Ohm |
| Solid state output type: | DC switchingTransistor output |
| Load current: | 0.001...0.1 A |
| Absolute maximum voltage: | 60 V |
| Maximum operating frequency: | 500 Hz |
| Surge current: | 0.3 A for 10 ms |
| Maximum voltage drop: | |
| Maximum leakage current: | 0.001 mA off-state |
| Response time: | 0.02 ms (turn-on)0.13 ms (turn-off) |
| Overvoltage category: | III |
| Width: | 5 mm |
| Height: | 28 mm |
| Depth: | 15 mm |
| Net weight: | 0.0041 kg |
| Device presentation: | Complete product |
| Flame retardance: | V0 conforming to UL 94 |
|---|---|
| Dielectric strength: | 3750 V for input/output |
| Pollution degree: | 2 |
| Standards: | IEC/EN 60947-1IEC/EN 62314UL 508C22.2 No. 14 |
| Product certifications: | cURusCSAEACCEUKCA |
| Marking: | CE |
| IP degree of protection: | IP00 |
| Ambient air temperature for operation: | -20...80 °C |
| Ambient air temperature for storage: | -20...85 °C |
| Total lifecycle Carbon footprint: | 3 kg CO2 eq.Carbon footprint of the manufacturing phase [A1 to A3] |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606480579684 |
|---|
