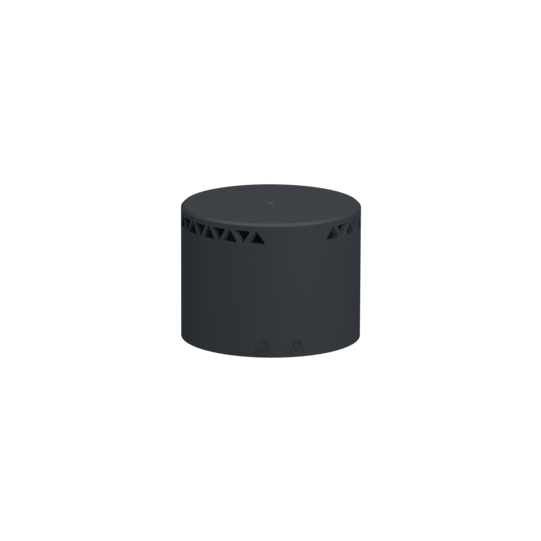

Sound Module, Harmony XVB7 Modular Tower Light, Ø70mm, 2 Tones, Grey - XVB7C9S
SKU : XVB7C9S
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Sound Module, Harmony XVB7 Modular Tower Light, Ø70mm, 2 Tones, Grey - XVB7C9S
DESCRIPTION
| Range of product: | Harmony XVB7 |
|---|---|
| Device composition: | 2 tone buzzer |
| Device short name: | XVB7 |
| Mounting diameter: | 70 mm |
| Signalling type: | Continuous or intermittent buzzer2 tones |
| Material: | Polycarbonate |
| Housing colour: | Dark grey |
| Net weight: | 0.080 kg |
| Mounting position: | Upright/inverted |
| Noise level: | 88...102 dB at 1 m |
|---|---|
| Pulse frequency: | 1 Hz |
| Control type: | DIP switch for tone/loudness |
| [Ue] rated operational voltage: | 24 V AC/DC |
| Rated operational voltage limits: | 21.6...26.4 V AC/DC |
| Current consumption: | 33 mA at 24 V AC22 mA at 24 V DC |
| Inrush current: | 1 A |
| Electrical shock protection class: | Class II |
| [Ui] rated insulation voltage: | 50 V |
| [Uimp] rated impulse withstand voltage: | 0.5 kV |
| Pollution degree: | 2 |
|---|---|
| Ambient air temperature for operation: | -25...60 °C |
| Ambient air temperature for storage: | -40...70 °C |
| IP degree of protection: | IP66 |
| NEMA degree of protection: | Type 4/4X/12/13 indoor use only |
| Vibration resistance: | 6 gn, amplitude = +/- 0.5 mm (f = 10...500 Hz)in operation |
| Shock resistance: | 30 gn (duration = 6 ms) for in operation |
| Standards: | UL 60947-5-1IEC 60947-5-1CSA C22.2 No 60947-5-1 |
| Product certifications: | cULusCCCRCMUKCACE |
| Total lifecycle Carbon footprint: | 7 kg CO2 eq.Carbon footprint of the manufacturing phase [A1 to A3] |
| Unit Type of Package 1: | PCENumber of Units in Package 1 |
| Code EAN: | 3606487129615 |
|---|
