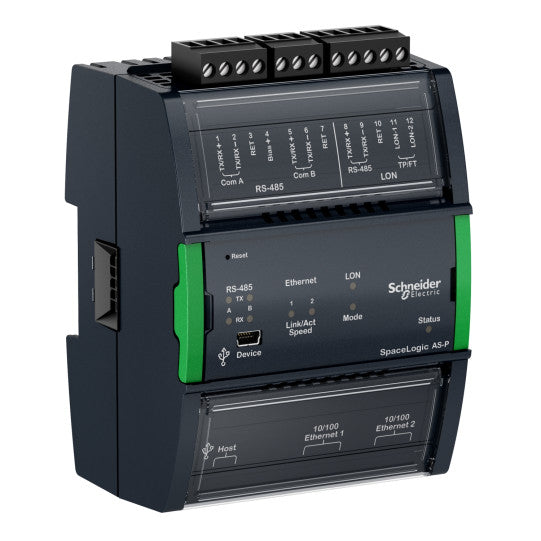

SpaceLogic AS-P-NLS, 2 ports RS-485,2 10/100 Ethernet ports, secure boot - SXWASPSBX10002
SKU : SXWASPSBX10002
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
SpaceLogic AS-P-NLS, 2 ports RS-485,2 10/100 Ethernet ports, secure boot - SXWASPSBX10002
DESCRIPTION
| Product or equipment type : | Network controller |
|---|---|
| Backup time : | 10 days |
| Model : | AS-P-NLS |
| Product certifications : | BTL B-BC, cUL listed, UL listed, RCM |
| Clock drift : | +/- 52 s/month |
| Color : | Black |
| Communication service : | TLS 1.0 |
| Device name : | AS-P-NLS |
| Flame retardance : | UL94-5VB |
| Power consumption : | 10 W |
| IP degree of protection : | IP20 |
| Mounting mode : | DIN rail mounting |
| Network frequency : | 50/60 Hz |
| Dimensions (HxWxD) : | 114 x 90 x 64 mm |
| Product weight : | 0.321 kg |
| Operating temperature : | 0?50 °C |
| Storage temperature : | -20?70 °C |
| Memory type : | 4 GB flash, 512 MB RAM |
| Standards : | EN 61000-6-2, EN 50491-5-3, EN 60730-1, EN 60730-2-11, EN 50491-3, UL 916, EN 50491-1, EN 61000-6-3, EN 50491-5-2, FCC part 15 class B |
| Communication port support : | Ethernet 10/100BASE-TX |
| Number of ports : | 2 x USB, 1 x USB Mini-B, 1 x USB type A, 2 x RS485 |
| [Us] rated supply voltage : | 24 V AC / 24 V DC |
| Maximum number of connected devices : | 464 |
| Supported protocols : | BACnet, HTTP, HTTPS, Modbus TCP, serial line master or slave, TCP |
| Relative humidity : | 0?95 % RH, non-condensing |
| Code EAN: | 3606482135581 |
|---|
