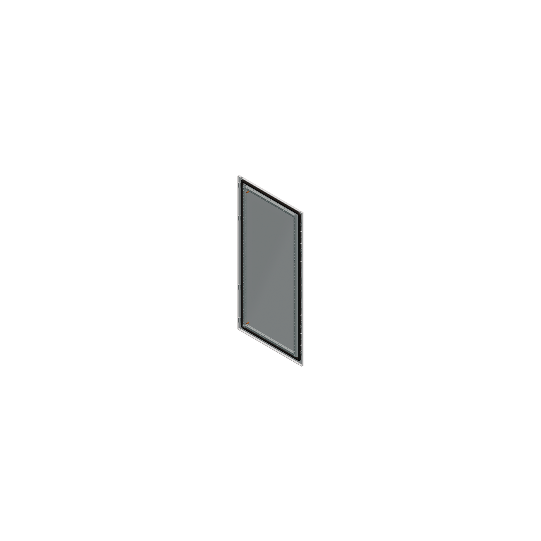

Spacial - full door for Spacial SF cell & SM cabinet - H=1600xL=800mm - NSYSFD168
SKU : NSYSFD168
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
Spacial - full door for Spacial SF cell & SM cabinet - H=1600xL=800mm - NSYSFD168
DESCRIPTION
| Range: | Spacial |
|---|---|
| Accessory / separate part category: | Enclosure accessory |
| Product or component type: | Door |
| Device application: | Multi-purpose |
| Enclosure nominal dimensions: | - |
| Mounting location: | FrontSide |
| Range compatibility: | Spacial SF |
| Device composition: | 1 door1 lock with handle and 5 mm double bar insert1 locking bar system 4 points1 reinforcement frame4 hinges4 locking bar catches |
| Quantity per set: | Set of 1 |
| Material: | Sheet steel |
|---|---|
| Colour: | Grey (RAL 7035) |
| Surface finish: | Epoxy-polyester powder |
| Lock type: | Lock 5 mm double bar |
| Number of locks: | 1 |
| Door type: | External plain |
| Door opening side: | Reversible (120 °) |
| Maximum load: | 60 kg/m² |
| Height: | 1600 mm nominal: |
| Width: | 800 mm nominal: |
| Sustainable offer status: | Green Premium product |
|---|---|
| REACh Regulation: | Free of Substances of Very High Concern above the threshold |
| REACh free of SVHC: | Yes |
| EU RoHS Directive: | Pro-active compliance (Product out of EU RoHS legal scope) |
| Mercury free: | Yes |
| RoHS exemption information: | Yes |
| China RoHS Regulation: | Product out of China RoHS scope. Substance declaration for your information |
| Environmental Disclosure: | ENVPEP110923EN |
| Code EAN: | 3606485119410 |
|---|---|
| Substitution_texte: | Obsolete product |
