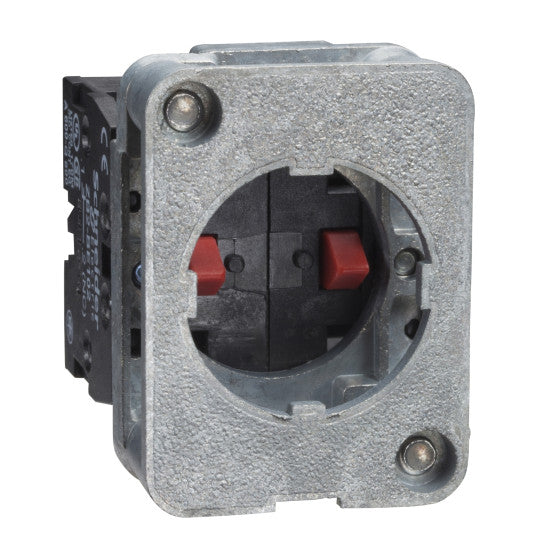

spring return contact block - 2 NC - front mounting, 30 or 40 mm centres - XACS414
SKU : XACS414
Regular price €0,00
Contact us for price and lead time for this product. Our team will respond quickly.
We offer reliable worldwide shipping through trusted logistics partners.
Most products ship within 2–4 weeks of order confirmation, depending on stock and supplier availability.
Once your order is shipped, you’ll receive a tracking link to follow the delivery.
For urgent requirements, please contact us before ordering — we’ll do our best to arrange faster dispatch.
We take great care in packaging and ensure all goods are delivered safely and promptly.
Lead time: 2–3 weeks – Ships quickly after order confirmation
spring return contact block - 2 NC - front mounting, 30 or 40 mm centres - XACS414
DESCRIPTION
| Range of product: | Harmony XAC |
|---|---|
| Product or component type: | Contact block |
| Component name: | XACS |
| Electrical circuit type: | Control circuit |
| Contact block type: | Single |
| Type of operator: | Spring return |
| Product compatibility: | ZA2B... headXACA |
| Mechanical interlocking: | Without mechanical interlock |
| Contacts type and composition: | 2 NC |
| Mounting of block: | Front mounting |
| Contact operation: | Slow-break |
| Connections - terminals: | Screw clamp terminals, 1 x 2.5 mm² with or without cable endScrew clamp terminals, 2 x 1.5 mm² with or without cable end |
|---|---|
| Horizontal fixing centres: | 40 mm |
| Vertical fixing centres: | 30 mm |
| Mechanical durability: | 1000000 cycles |
| Contact code designation: | A300 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix AQ300 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A |
| [Ithe] conventional enclosed thermal current: | 10 A |
| [Ui] rated insulation voltage: | 500 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage: | 6 kV conforming to IEC 60947-1 |
| Maximum resistance across terminals: | 25 MOhm |
| Short-circuit protection: | 10 A fuse protection by cartridge fuse type gG |
| Rated operational power in W: | 42 W DC-13 for 1000000 cycles, operating rate 45 W DC-13 for 1000000 cycles, operating rate 60 W DC-13 for 1000000 cycles, operating rate |
| Rated operational power in VA: | 140 VA AC-15 for 1000000 cycles, operating rate 385 VA AC-15 for 1000000 cycles, operating rate 455 VA AC-15 for 1000000 cycles, operating rate 525 VA AC-15 for 1000000 cycles, operating rate |
| Terminals description ISO n°1: | (21-22)NC(11-12)NC |
| Terminal identifier: | (13-14)NO(11-12)NC |
| Product weight: | 0.07 kg |
| Standards: | CSA C22.2 No 14IEC 60947-5-1EN 60947-5-1 |
|---|---|
| Ambient air temperature for operation: | -25...70 °C |
| Ambient air temperature for storage: | -40...70 °C |
| Vibration resistance: | 15 gn (f= 10...500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance: | 100 gn conforming to IEC 60068-2-27 |
| REACh Regulation: | Free of Substances of Very High Concern above the thresholdREACh free of SVHC |
| Code EAN: | 3389110647532 |
|---|
